Shop DAYTON

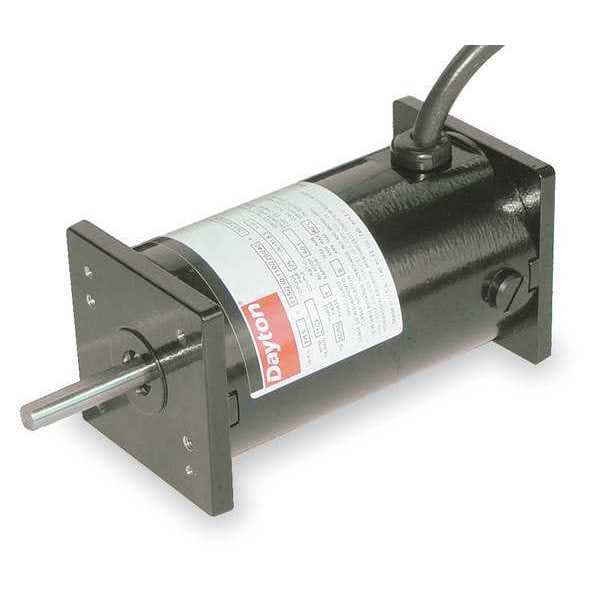

DC Mtr, PM, TENV, 1/20 HP, 1725rpm, 12/24VDC

  • Mfr # 3XE20F

  • Zoro # G1958126

product price:
$
256.99
/ea
Free Shipping & Returns

Key Features

HP
1/20, 1/9
Voltage
12/24V DC
Nameplate RPM
1,800/4,000 RPM
Shaft Dia.
5/16 in
Frame
Non-Standard
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3XE20F
Zoro #
G1958126
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/16 in
Overall Length
6 5/8 in
Shaft Length
1 1/2 in
Length Less Shaft
5 1/8 in
Manufacturers Warranty Length
1 yr
Bolt Circle Dia.
2 7/16 in
Stud Size
#8-32 x 3/8 in
Mounting Stud Thread Size
#8-32
Shaft Diameter
5/16 in
Bolt Circle Diameter
2 7/16 in
Frame Size
Non-Standard
Wire Rope Length
6 5/8 in
Length
6 5/8 in

Details

Item
DC Permanent Magnet Motor
HP
1/20, 1/9
Voltage
12/24V DC
Nameplate RPM
1,800/4,000 RPM
Frame
Non-Standard
Full Load Amps
4.51 A
RPM Range
1,701-1,800
Motor Thermal Protection
None
Ins. Class
F
Motor Mounting Type
Face/Base
Max. Ambient Temp.
40 Degrees C
Standards
UL Recognized (E47479)
Brush Type
Carbon
Bearings
Ball
Full Load Torque
1.8 in-lb
Base Mounting O.C.
4-15/16 x 1-1/4 in
Voltage Compatibility
24V DC
Face Mounting O.C.
1-3/4 x 1-3/4
RPM Group
1701-1800
Rotation
CW/CCW
Motor Application
General Purpose
Motor Design
Permanent Magnet
Motor Enclosure Design
Totally Enclosed Nonventilated
Mounting Stud Location
4/Bottom
Stud Quantity
4
Motor Bearings
Ball
Motor Shaft Rotation
CW/CCW
Motor Service Factor
1
Motor Mounting Position
Universal
Motor Shaft Design
Flat
Nominal Efficiency
70.9 %
Removable Base
No
Motor Frame Material
Steel
Weight
3 1/2 lb
Duty Cycle
Continuous
Capacitor Required
No
Replacement For
3XE20
Extended Thru-Bolts
No
Mounting Stud Pattern
4-11/16 in x 1-1/4 in
Nameplate Service Factor
1
Frame Material
Steel
Manufacturers Warranty
1 yr
Product Type
DC Motor
Ambient Temperature - Maximum
40 Degrees C
Application
General Purpose
Full Load Current
4.51 A
Bearing Type
Ball
Nameplate Voltage
12/24V DC
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Insulation Class
F
Shaft Design
Flat

Description

DC Permanent Magnet Motor, Not Applicable Phase, Motor Design Permanent Magnet, 1/20, 1/9 HP, Nameplate RPM 1,800/4,000 RPM, Voltage 12/24V DC, 4.51 A Full Load Amps, Non-Standard Frame, Full Load Torque 1.8 in-lb, Replacement For 3XE20, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Face/Base
