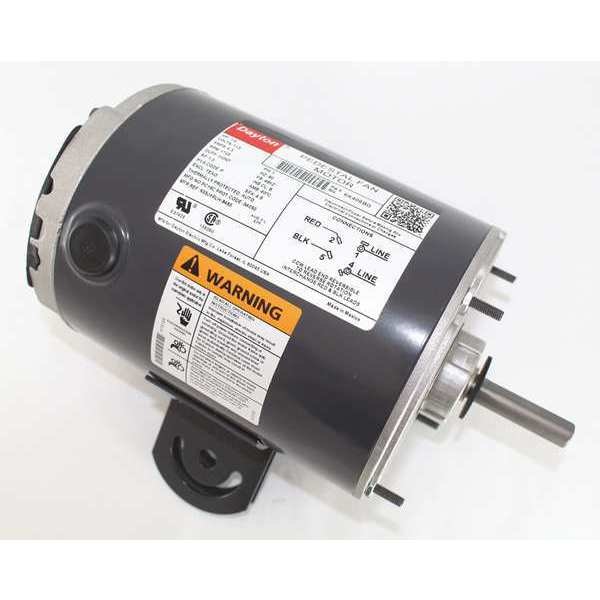

Dayton Pedestal Fan Motor, 1/4 hp 6K406 - main

Pedestal Fan Motor, 1/4 hp

  • Mfr # 6K406

  • Zoro # G2173281

product price: $195.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Phase
Single
HP
1/4
RPM Range
1,701-1,800
No. of Speeds
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6K406
Zoro #
G2173281
UPC #
190735365878
Country of Origin
Multiple

Dimensions

Body Dia.
5 5/8 in
Shaft Length
2 in
Overall Length
10 in
Shaft Dia.
1/2 in

Details

Item
Pedestal Fan Motor
Motor Design
Split-Phase
Phase
Single
HP
1/4
RPM Range
1,701-1,800
No. of Speeds
1
Voltage
115V AC
Motor Shaft Rotation
CW/CCW
Frame
48YZ
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Application
HVAC/R
Full Load Amps
4.5 A
Motor Mounting Type
Yoke
Motor Shaft Design
Flat
Ambient Temperature
40 Degrees C
Capacitor Required
No
Nameplate RPM
1,725
Motor Service Factor
1
Motor Thermal Protection
Auto
Max. Ambient Temp.
40 Degrees C
Ins. Class
B
Motor Bearings
Ball
Duty
Continuous
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
10 Ft. Cord and Pull Chain Switch
No
Hz
60 Hz
Motor Sub Application
Pedestal Fan
Standards
CSA Certified, UL Recognized
Motor Mounting Position
Horizontal
Duty Cycle
Continuous

Description

Pedestal Fan Motor, Single Phase, Motor Design Split-Phase, 1/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, 4.5 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Position Horizontal, Shaft Length 2 in, Shaft Dia. 1/2 in
