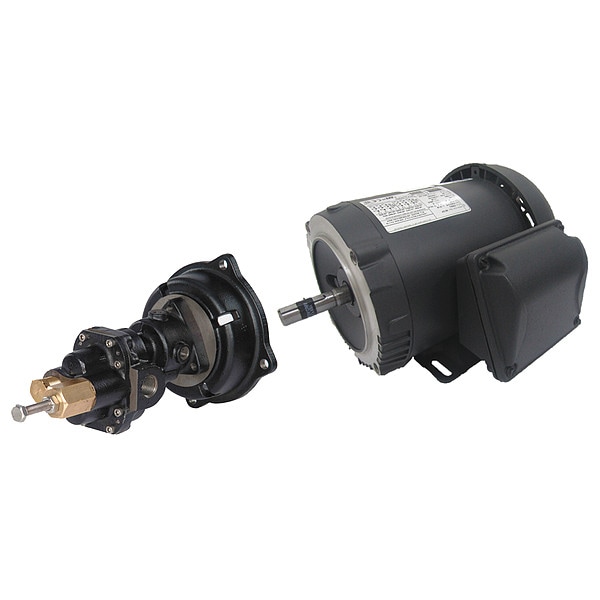

Dayton Rotary Pump, 125psi, Cst Irn, 1-1/2HP 41TK18 - main

Rotary Pump, 125psi, Cst Irn, 1-1/2HP

  • Mfr # 41TK18

  • Zoro # G2576977

product price: $894.99
/ea
Free Shipping & Returns

Key Features

Pump Type
Close Coupled
HP
1 1/2 hp
Voltage
230/460
Amps
4.4/2.2
Suction Lift (Ft.)
12.3 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
41TK18
Zoro #
G2576977
UPC #
00194484255626
Country of Origin
Multiple

Dimensions

Port Size (In.)
1/2 in
Height (In.)
23.25 in
Length (In.)
8.25 in
Width (In.)
12.8 in
Overall Height
23.3 in
Overall Width
12.8 in
Overall Length
8.3 in
Manufacturer Warranty Length
1 yr
Media Intake Connection Size
1/2 in

Details

Item
Rotary Gear Pump
Pump Type
Close Coupled
HP
1 1/2 hp
Voltage
230/460
Amps
4.4/2.2
Suction Lift (Ft.)
12.3 ft
Shaft Material
Steel
GPM @ 100 PSI
10.2 gpm
Max. Pressure (PSI)
125 psi
Motor Frame
56C
GPM @ 60 PSI
10.5 gpm
GPM @ 40 PSI
10.6 gpm
Motor Enclosure
Totally Enclosed Fan Cooled
GPM Max.
10.8 gpm
Max. RPM
1,725 RPM
Phase
Three
Max. Temp. (F)
280 Degrees F
GPM @ Freeflow
10.8 gpm
O-Ring
Viton
Seal
Viton Mechanical
Body Material
Cast Iron
Gear Material
Steel
Max. Viscosity (SSU)
500 SUS
Relief Valve
Yes
GPM @ 20 PSI
10.7 gpm
Amps AC
4.4/2.2
Temp. Range
32 Degrees to 280 Degrees F
Bushing
Carbon Graphite
Includes
36VF88, 4KHC7
Assembled/Unassembled
Unassembled
Motor Included
36VF88
Pump Head Included
4KHC7
O-Ring Material
Viton
Flow Rate @ 60 psi
10.5 gpm
Compatible Motor Frame
56C
Seal Material
Viton
Operating Temperature - Maximum
280 Degrees F
Flow Rate @ 40 psi
10.6 gpm
Nameplate Voltage
230/460V AC
Bushing Material
Carbon Graphite
Flow Rate @ 100 psi
10.2 gpm
Gear Design
Spur
Motor Speed - Maximum
1,725 RPM
Operating Temperature - Minimum
32 Degrees F
Flow Rate @ 20 psi
10.7 gpm
Operating Pressure - Maximum
125 psi
Flow Rate - Maximum
10.8 gpm
Viscosity - Maximum
500 SUS
Motor Mounting Type
Close Coupled
Seal Type
Mechanical
Horsepower - Maximum
1 1/2 hp
Suction Lift -Maximum
12.3 ft

Description

Rotary Gear Pump, Operating Pressure - Maximum 125 psi, Viscosity - Maximum 500 SUS, Phase Three, Nameplate Voltage 230/460V AC, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower - Maximum 1 1/2 hp, Operating Temperature - Minimum 32 Degrees F, Operating Temperature - Maximum 280 Degrees F, Media Intake Connection Size 1/2 in, Gear Design Spur, Gear Material Steel, Suction Lift -Maximum 12.3 ft, Flow Rate - Maximum 10.8 gpm, Seal Type Mechanical, Seal Material Viton
