Flojet

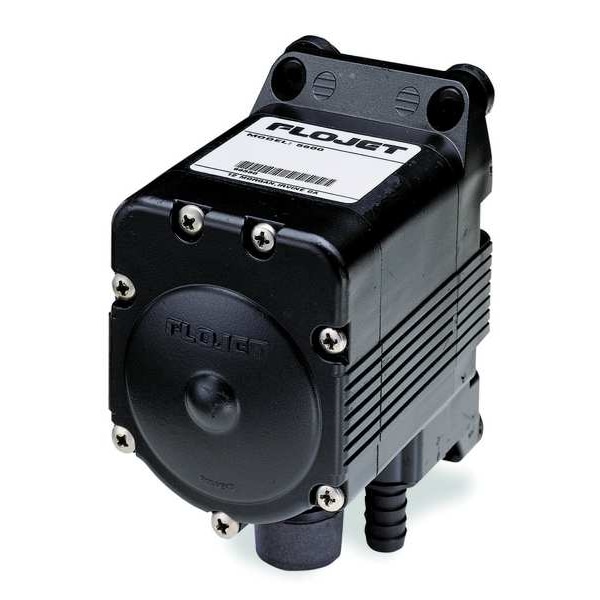

Double Diaphragm Pump, Polypropylene, Air Operated, Santoprene, 5 GPM

product price: $208.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Housing Material - Pumps Polypropylene
  • Diaphragm Material - Pumps Santoprene(R)
  • Max. Flow 5 gpm
  • Pump Operation Type Air
  • Max. Temp - Pumps 120 Degrees F
See all product information

Product Information

Dimensions

Inlet/Outlet Size 1/2 in
Air Inlet Size 1/4 in Barb
Height 5 3/4 in
Width 3 1/4 in
Manufacturers Warranty Length 1 yr
Max. Dia. Solids 1/8 in
Length 4 1/2 in
Overall Height 5.8 in
Air Intake Connection Size 1/4 in
Media Intake Connection Size 1/2 in
Overall Length 4.5 in
Media Discharge Connection Size 1/2 in
Solid Diameter (Maximum) 0.13 in
Overall Width 3.3 in

Details

Housing Material - Pumps Polypropylene
Diaphragm Material - Pumps Santoprene(R)
Max. Flow 5 gpm
Item - Air Operated Pumps Double Diaphragm Pump
Pump Operation Type Air
Max. Temp - Pumps 120 Degrees F
Connection Style Hose Barb
Check Seat Material Santoprene
Max. Operating Pressure 80 psi
Body Material Polypropylene
Item Double Diaphragm Pump
Valve Type Ball
Max. Flow GPM 5 gpm
Self-Priming Wet 20 ft
Max. Temp. 120 Degrees F
Manifold Connection Single Port
Self-Priming Dry 15 ft
Operation Type Air Operated
Diaphragm Material Santoprene
Media Intake Connection Type Barbed
Media Discharge Connection Type Barbed
Air Intake Connection Type Barbed
Media Temperature (Maximum) 120 Degrees F
Wetted Housing Material Polypropylene
Operating Pressure (Maximum) 80 psi
Flow Rate (Maximum) 5 gpm
Priming Self-Priming
Pump Assembly Type Bolt

Description

Double Diaphragm Pump, Air Intake Connection Size 1/4 in, Air Intake Connection Type Barbed, Check Seat Material Santoprene, Diaphragm Material Santoprene, Flow Rate (Maximum) 5 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1/2 in, Media Discharge Connection Type Barbed, Media Intake Connection Size 1/2 in, Media Intake Connection Type Barbed, Media Temperature (Maximum) 120 Degrees F, Operating Pressure (Maximum) 80 psi, Priming Self-Priming, Pump Assembly Type Bolt
