Dayton

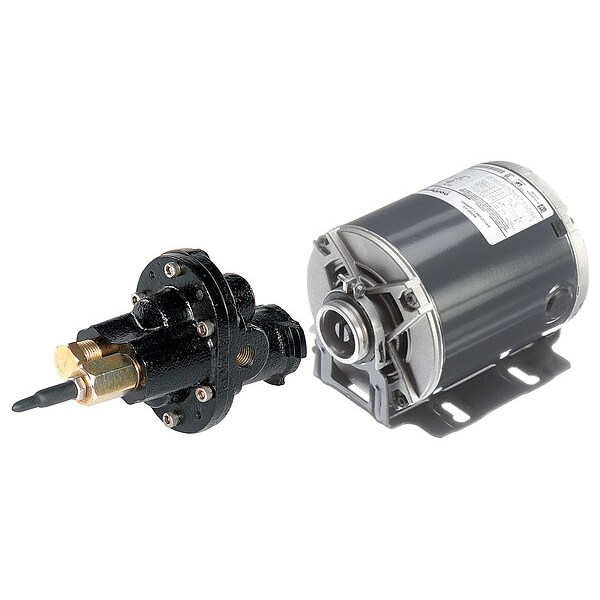

Rotary Pump, Carbonator, Cast Iron, 3.2Lift

original price: $490.85
14% off
new price: $417.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pump Type Carbonator
  • HP 1/3 hp
  • Voltage 115/230
  • Bushing Carbon Graphite
  • Relief Valve Yes
See all product information

Product Information

  • Brand Dayton
  • MFR # 41TK24
  • Zoro # G2577001
  • UPC #
    00663001390176
  • Country of Origin Multiple
  • Category Rotary Pumps

Dimensions

Height (In.) 15.25 in
Length (In.) 5.75 in
Width (In.) 5.625 in
Port Size (In.) 1/4 in
Overall Width 5.6 in
Overall Height 15.3 in
Overall Length 5.8 in
Manufacturer Warranty Length 1 yr
Media Intake Connection Size 1/4 in

Details

Item Rotary Gear Pump
Pump Type Carbonator
HP 1/3 hp
Voltage 115/230
Bushing Carbon Graphite
Relief Valve Yes
Max. Viscosity (SSU) 500 SUS
GPM @ 20 PSI 2.1 gpm
Gears Steel
Shaft Material Steel
GPM @ 100 PSI 1.3 gpm
GPM @ 40 PSI 1.9 gpm
Phase Single
Motor Enclosure Open Dripproof
Amps AC 5.6/2.8
O-Ring Viton
Max. Pressure (PSI) 100 psi
Suction Lift (Ft.) 3.2 ft
GPM @ Freeflow 2.2 gpm
Motor Frame Carbonator Mount
Temp. Range 32 Degrees to 280 Degrees F
GPM Max. 2.2 gpm
Max. RPM 1,725 RPM
Amps 5.6/2.8
GPM @ 60 PSI 1.7 gpm
Body Material Cast Iron
Max. Temp. (F) 210 Degrees F
Seal Viton Mechanical
Gear Material Steel
Motor Included 5U257
Assembled/Unassembled Unassembled
Pump Head Included 4KHR1
O-Ring Material Viton
Flow Rate @ 20 psi 2.1 gpm
Viscosity - Maximum 500 SUS
Operating Pressure - Maximum 100 psi
Flow Rate @ 60 psi 1.7 gpm
Flow Rate @ 100 psi 1.3 gpm
Flow Rate - Maximum 2.2 gpm
Gear Design Spur
Nameplate Voltage 115/230V AC
Motor Mounting Type Carbonator
Suction Lift -Maximum 3.2 ft
Seal Type Mechanical
Operating Temperature - Minimum 32 Degrees F
Seal Material Viton
Motor Speed - Maximum 1,725 RPM
Horsepower - Maximum 1/3 hp
Compatible Motor Frame Carbonator Mount
Flow Rate @ 40 psi 1.9 gpm
Operating Temperature - Maximum 280 Degrees F
Bushing Material Carbon Graphite

Description

Rotary Gear Pump, Operating Pressure - Maximum 100 psi, Viscosity - Maximum 500 SUS, Phase Single, Nameplate Voltage 115/230V AC, Motor Enclosure Open Dripproof, Horsepower - Maximum 1/3 hp, Operating Temperature - Minimum 32 Degrees F, Operating Temperature - Maximum 280 Degrees F, Media Intake Connection Size 1/4 in, Gear Design Spur, Gear Material Steel, Suction Lift -Maximum 3.2 ft, Flow Rate - Maximum 2.2 gpm, Seal Type Mechanical, Seal Material Viton, Body Material Cast Iron
