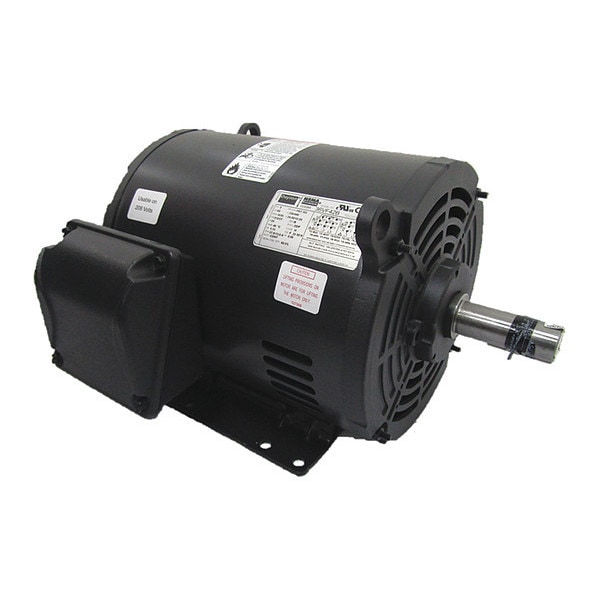

Three-Phase General Purpose Motor, 10 HP, 213/5T Frame, 230/460V AC Voltage, 3535 Nameplate RPM

  • Mfr # 36VF42

  • Zoro # G1578617

product price:
$
983.99
/ea
Additional $110.00 delivery surcharge applies per item.
See details
Zoro's best price: not eligible for any other offers or promotions

Key Features

HP
10
Nameplate RPM
3535
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
23.3/11.6 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
36VF42
Zoro #
G1578617
UPC #
190735275740
Country of Origin
Mexico
Item
General Purpose Motor
HP
10
Nameplate RPM
3535
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
23.3/11.6 A
Frame
213/5T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
CSA, UL
CC Number
CC029A
Inverter Rated
Yes
Includes
Shaft Key
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Green Certification or Other Recognition
NEMA Premium(R) Rated
Motor Thermal Protection
None
Footnotes
2,15,54
Duty Cycle
Continuous
Capacitor Required
No
Number of Speeds
1
Variable Torque Rating
10:1
Manufacturers Warranty
1 yr
Application
General Purpose
Frequency
60 Hz
Product Type
General Purpose Motor
Bearing Protection Type
No Protection
Bearing Type
Ball
Inverter Rating
Inverter Rated
Usable @ 200V
Not Usable at 200V
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Keyed
Insulation Class
F
NEMA Design Class
B
Usable @ 208V
Not Usable at 208V
Conduit Box Location
Exterior
Frame Material
Steel
Bearing Lubrication Type
Permanently Lubricated
Efficiency Rating
NEMA Premium Efficiency
Motor Enclosure Type
Open Drip Proof
Nameplate Service Factor @ 60 Hz
1.15
Mounting Position
Horizontal
Weight
48 15/32 kg
Full Load Current @ 60 Hz
24.8/12.4 A

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 10 HP, Nameplate RPM 3535, Frame 213/5T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 23.3/11.6 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 3001-3600, CSA, UL, Includes Shaft Key
