  11. Split-Phase Belt Drive Motor, 1/6 HP, 48 Frame, 115V AC Voltage, 1,725 Nameplate RPM
Shop All Belt Drive Motors
Dayton

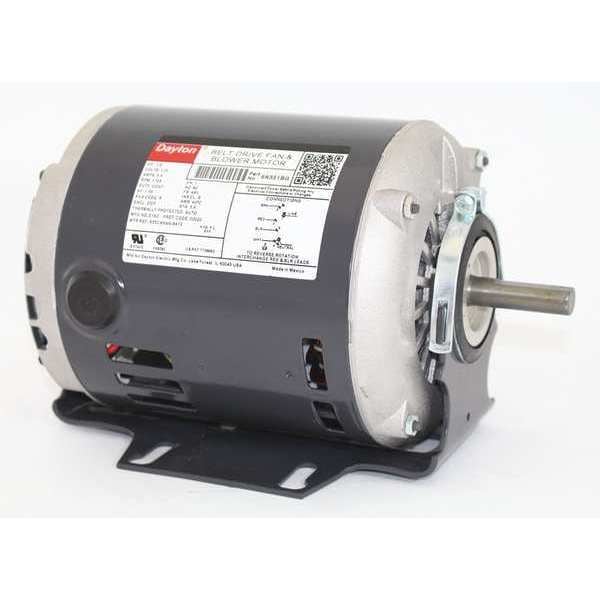

Split-Phase Belt Drive Motor, 1/6 HP, 48 Frame, 115V AC Voltage, 1,725 Nameplate RPM

product price: $159.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design Split-Phase
  • Motor Enclosure Design Open Dripproof
  • HP 1/6
  • No. of Speeds 1
  • RPM Range 1,701-1,800
See all product information

Product Information

Dimensions

Shaft Dia. 1/2 in
Overall Length 9 7/16 in
Body Dia. 5 5/8 in
Length Less Shaft 7 15/16 in
Shaft Length 1 1/2 in
Resilient Ring Dia. 2 1/2 in

Details

Item Belt Drive Motor
Motor Design Split-Phase
Motor Enclosure Design Open Dripproof
HP 1/6
No. of Speeds 1
RPM Range 1,701-1,800
Nameplate RPM 1,725
Voltage 115V AC
Frame 48
Motor Mounting Type Cradle Base
Motor Thermal Protection Auto
Motor Service Factor 1.35
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Phase Single
Motor Application HVAC/R
Motor Sub Application Belt Drive Fan/Blower
Frame Material Rolled steel
Standards CSA Certified (258501), UL Component Recognized (E37403)
Ring to Ring Center 6 9/16 in
Motor Bearings Ball
Ins. Class B
Motor Shaft Rotation CW/CCW
Max. Ambient Temp. 104 Degrees F
Duty Continuous
Hz 60 Hz
Motor Mounting Position All Angle
Motor Frame Material Rolled Steel
Motor Shaft Design Flat
Nominal Efficiency 51.7 %
Footnotes 50
Includes 1/2 in to 5/8 in Shaft Bushing and Shaft Key
Full Load Amps 3.4 A
Duty Cycle Continuous

Description

Belt Drive Motor, Single Phase, Motor Design Split-Phase, 1/6 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, 3.4 A Full Load Amps, 48 Frame, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel, Shaft Dia. 1/2 in
