Shop DAYTON

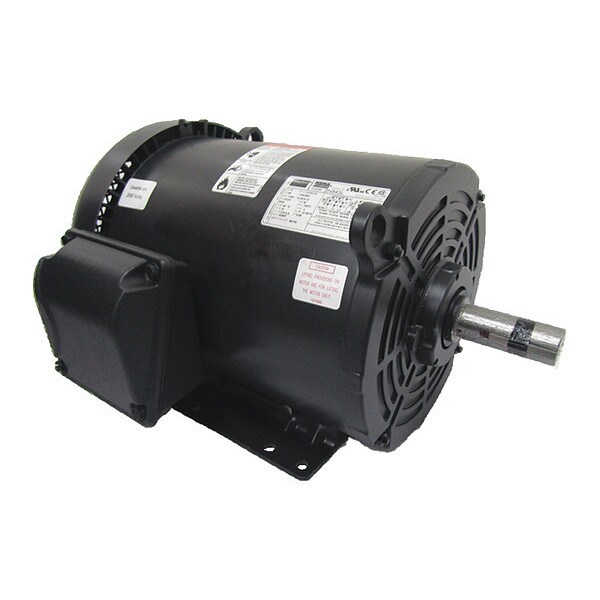

Three-Phase General Purpose Motor, 2 HP, 213/5 Frame, 230/460V AC Voltage, 1175 Nameplate RPM

  • Mfr # 2N943

  • Zoro # G2731294

product price:
$
964.99
/ea
Additional $80.00 delivery surcharge applies per item.
See details

Key Features

HP
2
Nameplate RPM
1175
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
6.3/3.1 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2N943
Zoro #
G2731294
UPC #
190735228241
Country of Origin
Mexico

Dimensions

Length Less Shaft
16 1/4 in
Overall Length
19 1/4 in
Shaft Dia.
1 1/8 in
Shaft Length
3 in
Manufacturers Warranty Length
3 yr
Body Diameter
9.78 in
Wire Rope Length
19 1/4 in
Shaft Diameter
1 1/8 in
Frame Size
213-5

Details

Item
General Purpose Motor
HP
2
Nameplate RPM
1175
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
6.3/3.1 A
Frame
213/5
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Shaft Design
Keyed
Nominal Efficiency
88.5 %
Standards
CE, CSA (264511), UL (E47479)
CC Number
CC029A
Footnotes
2,10,15
Motor Thermal Protection
None
Inverter Rated
Yes
Duty Cycle
Continuous
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1.15
Bearing Type
Ball
Full Load Current @ 60 Hz
6.26/3.13 A
Motor Enclosure Type
Totally Enclosed Fan Cooled
Inverter Rating
Inverter Rated
Product Type
General Purpose Motor
Usable @ 200V
Not Usable at 200V
Frequency
60 Hz
Usable @ 208V
Not Usable at 208V
Weight
57 25/32 kg
Efficiency Rating
NEMA Premium Efficiency
Variable Torque Rating
10:1
Mounting Position
All Angle
Manufacturers Warranty
3 yr
Bearing Protection Type
Shaft Slingers
Includes
Shaft Key
Bearing Lubrication Type
Permanently Lubricated
NEMA Design Class
B
Conduit Box Location
Exterior
Constant Torque Rating
4:1
Insulation Class
F
Number of Speeds
1
Application
General Purpose
Shaft Design
Keyed

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 1175, Frame 213/5, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 6.3/3.1 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88.5 Percent, Continuous Duty, 1,101-1,200
