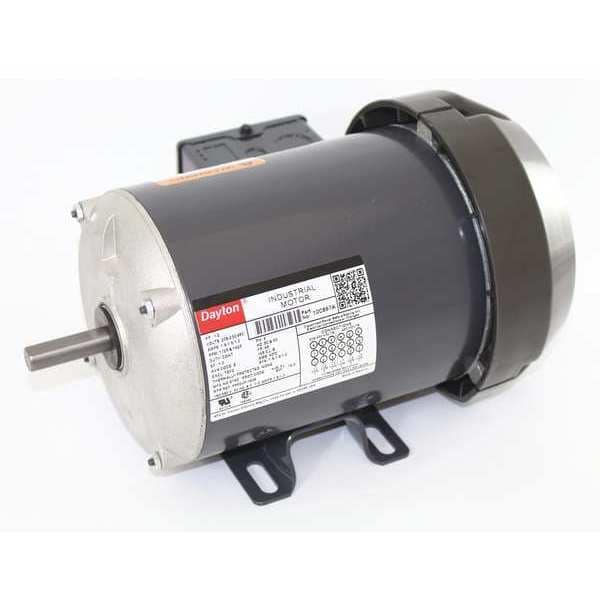

Three-Phase General Purpose Motor, 1/2 HP, 48 Frame, 208-230/460V AC Voltage, 1,725 Nameplate RPM

Mfr # 10C897
Zoro # G4076913

308.99

Additional $75.00 delivery surcharge applies per item.

Key Features

1/2

Nameplate RPM

1,725

Voltage

208-230/460V AC

Motor Mounting Type

Rigid Base

Full Load Amps

1.9-1.9/1.0 A

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 10C897
Zoro #: G4076913
UPC #: 190735108727
Country of Origin: Mexico

Dimensions

Length Less Shaft: 9 13/16 in
Overall Length: 11 1/4 in
Shaft Dia.: 1/2 in
Shaft Length: 1 1/2 in
Manufacturers Warranty Length: 1 yr
Frame Size: 48
Shaft Diameter: 1/2 in
Bolt Circle Diameter: 5 1/8 in
Body Diameter: 5.48 in
Wire Rope Length: 11 1/4 in
Length: 11 1/4 in

Details

Item: General Purpose Motor
HP: 1/2
Nameplate RPM: 1,725
Voltage: 208-230/460V AC
Motor Mounting Type: Rigid Base
Full Load Amps: 1.9-1.9/1.0 A
Frame: 48
Motor Bearings: Ball
Motor Service Factor: 1
Motor Design: Three-Phase
Motor Enclosure Design: Totally Enclosed Fan Cooled
RPM Range: 1701-1800
Phase: Three
No. of Speeds: 1
Motor Application: General Purpose
Motor Shaft Rotation: CW/CCW
Voltage Compatibility: 200-230/460V AC, 208-230/460V AC, 460V AC
Hz: 50/60 Hz
Ins. Class: B
Max. Ambient Temp.: 40 Degrees C
Motor Frame Material: Steel
Motor Mounting Position: All Angle
Motor Shaft Design: Flat
Nominal Efficiency: 74 %
Standards: CSA Certified (258501), UL Recognized (E47479)
Includes: Conduit Box
Footnotes: 5, 10, 51
Motor Thermal Protection: None
Inverter Rated: Yes
Duty Cycle: Continuous
Usable @ 200V: Usable at 200V
Inverter Rating: Inverter Rated
NEMA Design Class: B
Product Type: General Purpose Motor
Nameplate Voltage @ 50 Hz: 190/380V AC
Nameplate Service Factor @ 60 Hz: 1
Nameplate RPM @ 50 Hz: 1,425 RPM
Frame Material: Steel
Motor Enclosure Type: Totally Enclosed Fan Cooled
Frequency: 60/50 Hz
Usable @ 208V: Usable at 208V
Bearing Type: Ball
Ambient Temperature - Maximum: 40 Degrees C
Weight: 17 lb
Full Load Current @ 60 Hz: 1.9-1.9/1.0 A
Manufacturers Warranty: 1 yr
Conduit Box Location: Exterior
Application: General Purpose
Number of Speeds: 1
Shaft Design: Flat
Nameplate Service Factor @ 50 Hz: 1
Efficiency Rating: NEMA Standard Efficiency
Nameplate Horsepower @ 50 Hz: 1/2 hp
Insulation Class: B
Bearing Lubrication Type: Permanently Lubricated
Full Load Current @ 50 Hz: 1.9/1.0
Mounting Position: All Angle

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/2 HP, Nameplate RPM 1,725, Frame 48, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 1.9-1.9/1.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 74 Percent, Continuous Duty, 1701-1800
