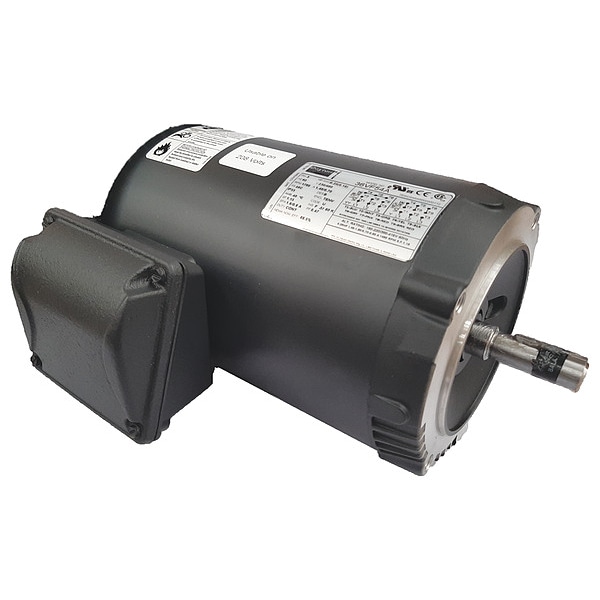

Three-Phase General Purpose Motor, 1/4 HP, 56C Frame, 230/460V AC Voltage, 1780 Nameplate RPM

  • Mfr # 36VF54

  • Zoro # G0692155

product price:
$
295.99
/ea
Free Shipping & Returns

Key Features

HP
1/4
Nameplate RPM
1780
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
1.40/0.70 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
36VF54
Zoro #
G0692155
UPC #
190735275863
Country of Origin
Mexico

Dimensions

Length Less Shaft
8 7/8 in
Overall Length
10 11/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Frame Size
56C
Bolt Circle Diameter
5 7/8 in
Shaft Diameter
5/8 in
Wire Rope Length
10 11/16 in
Body Diameter
6.45 in
Length
10 11/16 in

Details

Item
General Purpose Motor
HP
1/4
Nameplate RPM
1780
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
1.40/0.70 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Non-Ventilated
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
68.5 %
Standards
CE, CSA, UL
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Inverter Rated
Yes
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium Rated
Footnotes
2, 15, 56
Capacitor Required
No
Duty Cycle
Continuous
Insulation Class
F
Variable Torque Rating
10:1
Conduit Box Location
Exterior
Bearing Type
Ball
Bearing Protection Type
Shaft Slingers
Efficiency Rating
NEMA Standard Efficiency
Weight
10 17/32 kg
Usable @ 208V
Not Usable at 208V
Shaft Design
Keyed
Full Load Current @ 60 Hz
1.4/0.7 A
Motor Enclosure Type
Totally Enclosed Non-Ventilated
NEMA Design Class
B
Manufacturers Warranty
1 yr
Frame Material
Steel
Bearing Lubrication Type
Permanently Lubricated
Nameplate Service Factor @ 60 Hz
1.15
Application
General Purpose
Mounting Position
Horizontal
Inverter Rating
Inverter Rated
Usable @ 200V
Not Usable at 200V
Frequency
60 Hz
Number of Speeds
1
Ambient Temperature - Maximum
40 Degrees C
Product Type
General Purpose Motor
Includes
Shaft Key

Description

General Purpose Motor, Three-Phase, Totally Enclosed Non-Ventilated Motor Enclosure Design, 1/4 HP, Nameplate RPM 1780, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.40/0.70 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 68.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
