Shop DAYTON

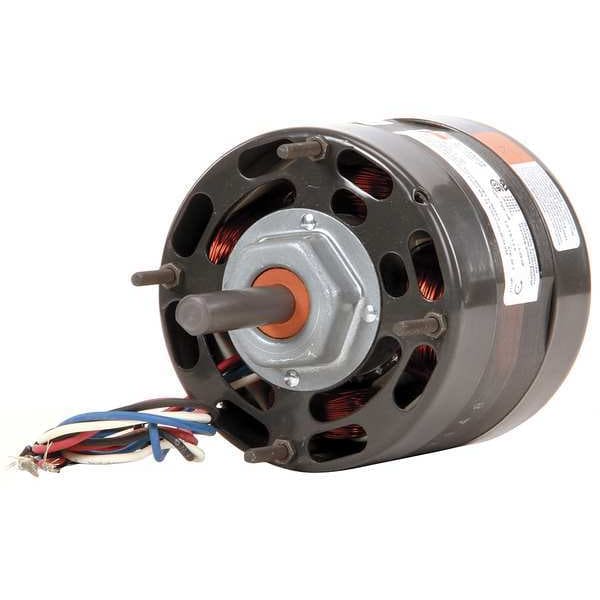

Motor, Sh Pole, 1/20 HP, 1550,115V, 4.4, ODP

  • Mfr # 1AGF8

  • Zoro # G3104787

product price:  $173.99
/ea
Free Shipping & Returns

Key Features

Motor Application
HVAC/R
No. of Speeds
3
Mounting Stud Pattern
3 7/8 in
Application
Fan/Blower
Voltage
115V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1AGF8
Zoro #
G3104787
UPC #
190735131190
Country of Origin
United States

Dimensions

Overall Length
7 5/16 in
Length Less Shaft
5 3/8 in
Shaft Length
2 3/4 in
Stud Size
#10-32
Bolt Circle Dia.
3 7/8 in
Body Dia.
4 7/16 in
Shaft Dia.
1/2 in
Frame Size
4.4
Shaft Diameter
1/2 in
Bolt Circle Diameter
3 7/8 in
Body Diameter
4.4 in
Mounting Stud Thread Size
#10-32

Details

Motor Application
HVAC/R
No. of Speeds
3
Mounting Stud Pattern
3 7/8 in
Application
Fan/Blower
Voltage
115V AC
HP
1/17
Item
Fan and Blower Motor
Phase
Single
Standards
CSA Certified Motor, UL Recognized
Capacitor Required
Capacitor Included
Mounting Stud Location
4/Shaft End
Motor Shaft Design
Flat
Motor Shaft Rotation
CCWSE
Motor Bearings
Sleeve
Replacement For
2RB53, 5DVP0, 5DVP1, 5DVP2, 5DVP3, 5DVR7
Motor Enclosure Design
Open Air-Over
Motor Service Factor
1
Hz
60 Hz
Frame
4.4
Motor Mounting Type
Ring/Stud
Duty
Continuous
Motor Thermal Protection
Auto
Max. Ambient Temp.
40 Degrees C
Motor Design
Shaded Pole
Ins. Class
B
RPM Range
1,501-1,600
Full Load Amps
0.95 A
Motor Mounting Position
All Angle
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Sub Application
Direct Drive
Nameplate RPM
1,550
Number of Shafts
1
Usable @ 200V
Not Usable at 200V
Mounting Holes
(4) #10-32
Usable @ 208V
Not Usable at 208V
Stud Quantity
4
Duty Cycle
Continuous
Number of Speeds
3
Mounting
Stud
Shaft Design
Flat
Frequency
60 Hz
Frame Material
Steel
Product Type
Fan and Blower Motor
Sub Application
Ventilator
Full Load Current @ 60 Hz
0.95 A
Wattage
37 W
Nameplate Service Factor @ 60 Hz
1
Bearing Type
Sleeve
Drive Type
Direct Drive
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Air Over

Description

Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/17 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 3, Voltage 115V AC, 0.95 A Full Load Amps, 4.4 Frame, Output Watts 37 W, 60 Hz Hz, Replacement For 2RB53, 5DVP0, 5DVP1, 5DVP2, 5DVP3, 5DVR7, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE
