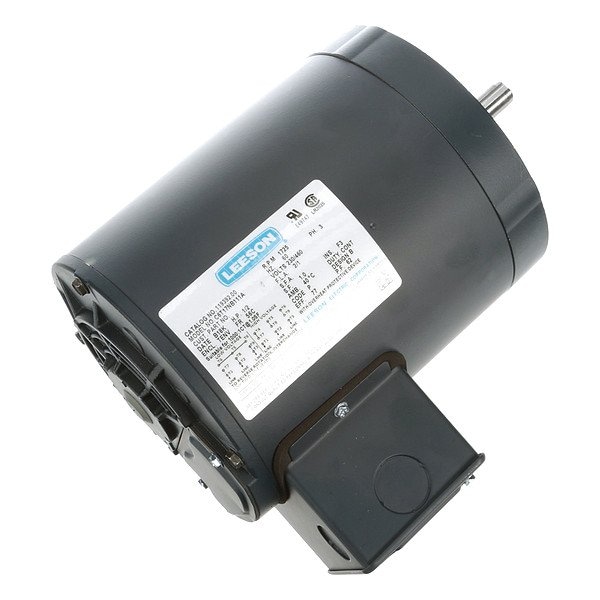

Three-Phase General Purpose Motor, 1/2 HP, 56C Frame, 230/460V Voltage, 1,725 Nameplate RPM

  • Mfr # 119392.00
  • Zoro # G611934869
product price:
$
732.99
/ea
Free Shipping & Returns

Key Features

HP
1/2
Nameplate RPM
1,725
Voltage
230/460V
Motor Mounting Type
C-Face
Full Load Amps
1.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
119392.00
Zoro #
G611934869
UPC #
691720993811
Country of Origin
Mexico

Dimensions

Length Less Shaft
8 3/8 in
Overall Length
10 7/16 in
Shaft Dia.
5/8 in
Shaft Length
2 1/16 in
Frame Size
56C
Shaft Diameter
5/8 in
Wire Rope Length
10 7/16 in
Length
10 7/16 in

Details

Item
General Purpose Motor
HP
1/2
Nameplate RPM
1,725
Voltage
230/460V
Motor Mounting Type
C-Face
Full Load Amps
1.0 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Non-Ventilated
RPM Range
1725
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
Reversible
Voltage Compatibility
230/460V
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
77 %
Standards
CSA Certified, UL Listed
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Weight
21 lb
NEMA Design
B
Inverter Rated
Yes
Motor Thermal Protection
T-Stat
Inverter Rating
Inverter Rated
NEMA Design Class
B
Efficiency Rating
Standard Efficiency (IE1)
Ambient Temperature - Maximum
40 Degrees C
Mounting Position
Horizontal
Insulation Class
F
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1
Number of Speeds
1
Shaft Design
Keyed
Frequency
60 Hz
Frame Material
Steel
Full Load Current @ 60 Hz
1.0 A
Product Type
General Purpose Motor
Application
General Purpose
Motor Enclosure Type
Totally Enclosed Non-Ventilated

Description

General Purpose Motor, Three-Phase, Totally Enclosed Non-Ventilated Motor Enclosure Design, 1/2 HP, Nameplate RPM 1,725, Frame 56C, Voltage 230/460V, 60 Hz Hz, Three Phase, Full Load Amps 1.0 A, C-Face Motor Mounting Type, Motor Thermal Protection T-Stat, Ins. Class F, Motor Service Factor 1, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 77 Percent, 1725, CSA Certified, UL Listed
