Shop DAYTON

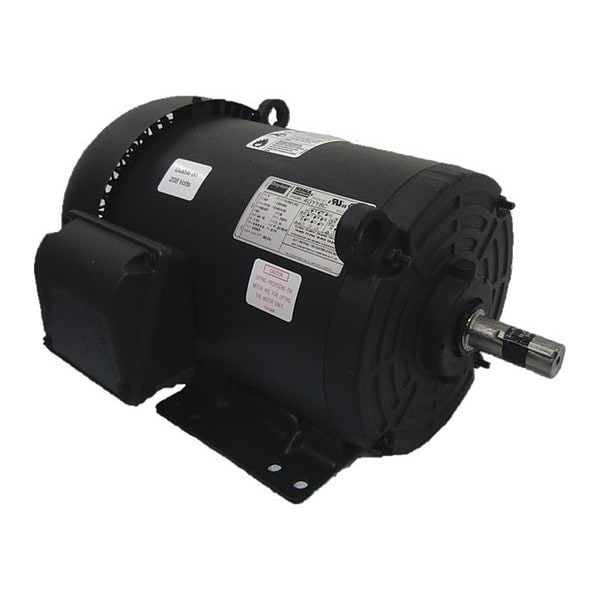

Three-Phase General Purpose Motor, 2 HP, 182/4T Frame, 230/460V AC Voltage, 1165 Nameplate RPM

  • Mfr # 4GYY8

  • Zoro # G2779822

product price:
$
788.99
/ea
Free Shipping & Returns

Key Features

HP
2
Nameplate RPM
1165
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
6.6/3.3 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4GYY8
Zoro #
G2779822
UPC #
190735324721
Country of Origin
Mexico

Dimensions

Length Less Shaft
13 13/16 in
Overall Length
16 9/16 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Manufacturers Warranty Length
3 yr
Body Diameter
8.11 in
Shaft Diameter
1 1/8 in
Frame Size
182-4T
Wire Rope Length
16 9/16 in
Length
16 9/16 in

Details

Item
General Purpose Motor
HP
2
Nameplate RPM
1165
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
6.6/3.3 A
Frame
182/4T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
88.5 %
Standards
CE, CSA, UL
CC Number
CC029A
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Footnotes
3,16
Inverter Rated
Yes
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
Duty Cycle
Continuous
Shaft Design
Keyed
Bearing Protection Type
Shaft Slingers
Product Type
General Purpose Motor
Bearing Lubrication Type
Permanently Lubricated
Ambient Temperature - Maximum
40 Degrees C
Manufacturers Warranty
3 yr
Application
General Purpose
NEMA Design Class
B
Usable @ 200V
Not Usable at 200V
Conduit Box Location
Exterior
Constant Torque Rating
4:1
Nameplate Service Factor @ 60 Hz
1.15
Variable Torque Rating
10:1
Frequency
60 Hz
Weight
35 27/32 kg
Motor Enclosure Type
Totally Enclosed Fan Cooled
Efficiency Rating
NEMA Premium Efficiency
Insulation Class
F
Number of Speeds
1
Bearing Type
Ball
Usable @ 208V
Not Usable at 208V
Inverter Rating
Inverter Rated
Includes
Shaft Key
Full Load Current @ 60 Hz
6.0/3.0 A

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 1165, Frame 182/4T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 6.6/3.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL
