Shop U.S. MOTORS

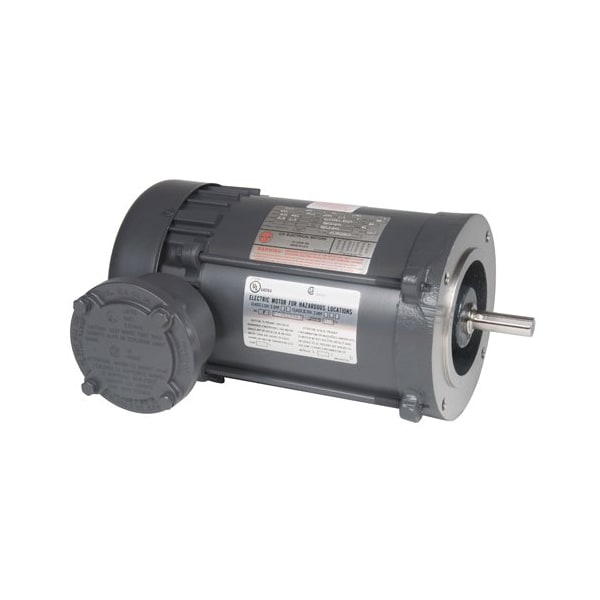

HazardousLocationMotor, 3/4hp, 3450RPM

  • Mfr # XS34CA1J

  • Zoro # G1929570

product price:
$
566.99
/ea
Free Shipping & Returns

Key Features

HP
3/4 hp
Nameplate RPM
3,450 RPM
Voltage
115/208-230V AC
Frame
56
Shaft Dia.
5/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XS34CA1J
Zoro #
G1929570
UPC #
786382071219
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Length Less Shaft
11 5/16 in
Manufacturers Warranty Length
1 yr
Overall Length
13 3/16 in
Shaft Diameter
5/8 in
Frame Size
56
Wire Rope Length
13 3/16 in

Details

HP
3/4 hp
Nameplate RPM
3,450 RPM
Voltage
115/208-230V AC
Frame
56
Motor Shaft Rotation
CW/CCW
RPM Range
3,001-3,600
Phase
Single
Motor Sub Application
General Purpose AC Motors
Motor Mounting Type
Rigid Base
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Bearings
Sealed
Hz
60 Hz
Item
Hazardous Location Motor
Motor Shaft Design
Keyed
Motor Design
Capacitor-Start
Motor Service Factor
1
Max. Ambient Temp.
40 Degrees C
Ins. Class
B
Full Load Amps
10.4/5.3-5.2 A
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application
Hazardous Location
Motor Mounting Position
Horizontal
No. of Speeds
1
Hazardous Location Class
Class I, Class II
Motor Frame Material
Steel
Usable @ 208V
Usable at 208V
Conduit Box Location
Exterior
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Temp. Code
T3C
Standards
CSA Certified, UL Listed
Nominal Efficiency
68 %
Hazardous Location Division
Division I
Weight
32 lb
NEMA Design
None
Includes
Conduit Box
Hazardous Location Group
Group C, Group D, Group E, Group F, Group G
Ambient Temperature - Maximum
40 Degrees C
Application
Hazardous Location
Mounting Position
Horizontal
Full Load Current @ 60 Hz
10.4/5.3-5.2 A
Number of Speeds
1
Shaft Design
Keyed
Frame Material
Steel
Manufacturers Warranty
1 yr
Temperature Code
T3C
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B
Frequency
60 Hz
Product Type
Hazardous Location Motor

Description

Hazardous Location Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 10.4/5.3-5.2 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3C, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
