Shop DAYTON

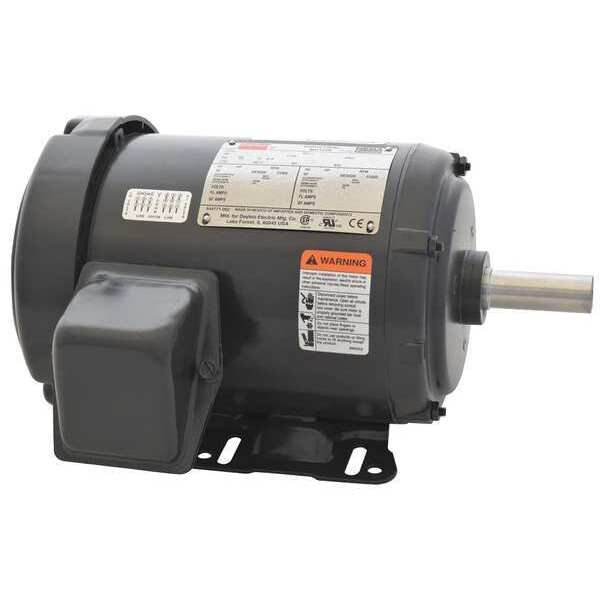

Three-Phase General Purpose Motor, 3 HP, 143-5T/56HZ Frame, 208-230/460V AC Voltage

  • Mfr # 41D774

  • Zoro # G5708114

product price:
$
952.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
3510
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
7.2/3.6 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
41D774
Zoro #
G5708114
UPC #
190735298640
Country of Origin
Mexico

Dimensions

Length Less Shaft
10 11/16 in
Overall Length
12 5/8 in
Shaft Dia.
7/8 in
Shaft Length
2 in
Manufacturers Warranty Length
1 yr
Body Diameter
7.31 in
Frame Size
143-5T/56HZ
Shaft Diameter
7/8 in
Wire Rope Length
12 5/8 in
Length
12 5/8 in

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
3510
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
7.2/3.6 A
Frame
143-5T/56HZ
Motor Bearings
Ball
Motor Service Factor
1.25
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
85.5 %
Standards
CSA (258525), UL (E47479)
CC Number
CC060A
Green Certification or Other Recognition
NEMA Premium(R) Rated
Footnotes
2,10,15
Motor Thermal Protection
None
Duty Cycle
Continuous
Includes
Shaft Key
Product Type
General Purpose Motor
Weight
30 lb
Conduit Box Location
Exterior
Bearing Lubrication Type
Permanently Lubricated
Insulation Class
F
NEMA Design Class
B
Application
General Purpose
Usable @ 200V
Usable at 200V
Frequency
60/50 Hz
Nameplate Horsepower @ 50 Hz
1 hp
Nameplate Voltage @ 50 Hz
190/380V AC
Full Load Current @ 60 Hz
3.0/1.5 A
Full Load Current @ 50 Hz
1.7/3.4
Manufacturers Warranty
1 yr
Usable @ 208V
Usable at 208V
Nameplate Service Factor @ 50 Hz
1
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate RPM @ 50 Hz
1,440 RPM
Mounting Position
All Angle
Efficiency Rating
NEMA Premium Efficiency
Shaft Design
Keyed
Number of Speeds
1
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1.25
Ambient Temperature - Maximum
40 Degrees C
Inverter Rating
Inverter Rated

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 3510, Frame 143-5T/56HZ, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 7.2/3.6 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 3001-3600, CSA, UL
