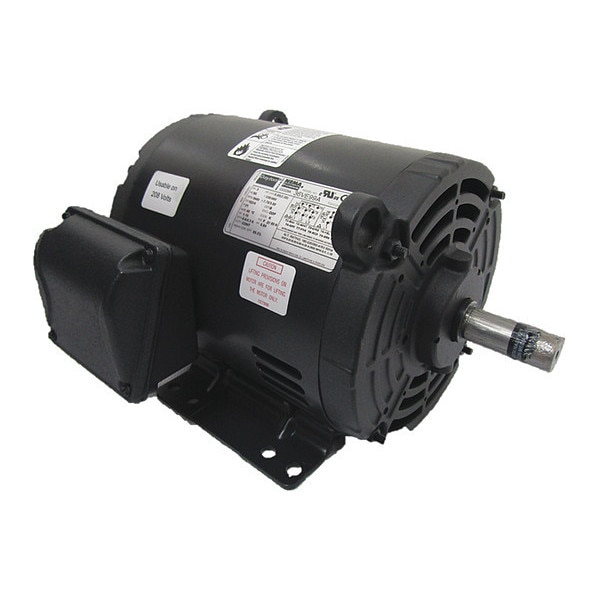

Three-Phase General Purpose Motor, 3 HP, 182/4 Frame, 230/460V AC Voltage, 3445 Nameplate RPM

  • Mfr # 36VE99
  • Zoro # G1860638
product price:
$
585.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
3445
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
7.8/3.9 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
36VE99
Zoro #
G1860638
UPC #
190735275337
Country of Origin
Mexico

Dimensions

Length Less Shaft
11 1/4 in
Overall Length
13 1/2 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
7/8 in
Frame Size
182-4
Body Diameter
8.11 in
Wire Rope Length
13 1/2 in
Length
13 1/2 in

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
3445
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
7.8/3.9 A
Frame
182/4
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
85.5 %
Standards
CSA, UL
CC Number
CC029A
Footnotes
2,15,53
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
Includes
Shaft Key
Motor Thermal Protection
None
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Duty Cycle
Continuous
Capacitor Required
No
Nameplate Service Factor @ 60 Hz
1.15
Insulation Class
F
Frame Material
Steel
Shaft Design
Keyed
Weight
23 5/16 kg
Variable Torque Rating
10:1
Conduit Box Location
Exterior
Manufacturers Warranty
1 yr
Frequency
60 Hz
Full Load Current @ 60 Hz
7.7/3.8 A
Number of Speeds
1
Ambient Temperature - Maximum
40 Degrees C
Product Type
General Purpose Motor
Bearing Protection Type
No Protection
Efficiency Rating
NEMA Premium Efficiency
Usable @ 208V
Not Usable at 208V
Motor Enclosure Type
Open Drip Proof
NEMA Design Class
B
Bearing Lubrication Type
Permanently Lubricated
Inverter Rating
Inverter Rated
Usable @ 200V
Not Usable at 200V
Bearing Type
Ball
Application
General Purpose
Mounting Position
Horizontal

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3 HP, Nameplate RPM 3445, Frame 182/4, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 7.8/3.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 3001-3600, CSA, UL, Includes Shaft Key
