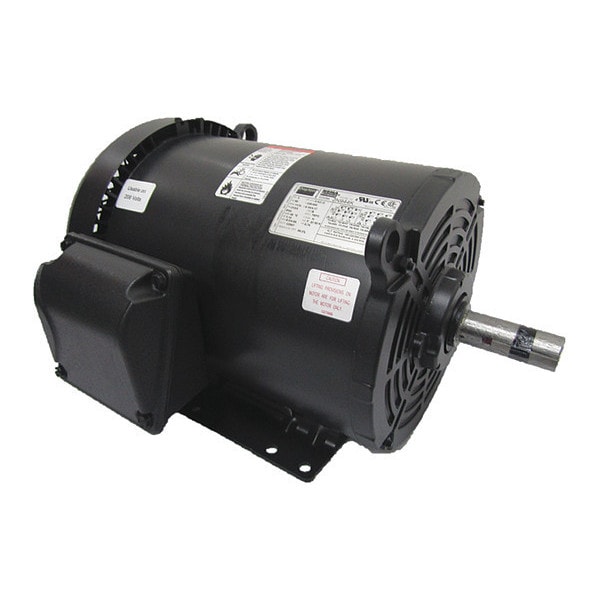

Three-Phase General Purpose Motor, 3 HP, 213/5 Frame, 230/460V AC Voltage, 1170 Nameplate RPM

  • Mfr # 2N944

  • Zoro # G0662566

product price:
$
1,006.99
/ea
Additional $85.00 delivery surcharge applies per item.
See details

Key Features

HP
3
Nameplate RPM
1170
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.9/4.5 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2N944
Zoro #
G0662566
UPC #
190735228258
Country of Origin
Mexico

Dimensions

Length Less Shaft
15 1/2 in
Overall Length
19 1/4 in
Shaft Dia.
1 1/8 in
Shaft Length
3 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
1 1/8 in
Wire Rope Length
19 1/4 in
Body Diameter
9.78 in
Frame Size
213-5
Length
19 1/4 in

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
1170
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.9/4.5 A
Frame
213/5
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
CE, CSA (264511), UL (E47479)
CC Number
CC029A
Inverter Rated
Yes
Motor Thermal Protection
None
Footnotes
2,10,15
Duty Cycle
Continuous
Includes
Shaft Key
Product Type
General Purpose Motor
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Weight
60 11/16 kg
Mounting Position
All Angle
Usable @ 200V
Not Usable at 200V
Shaft Design
Keyed
Inverter Rating
Inverter Rated
Variable Torque Rating
10:1
Conduit Box Location
Exterior
Full Load Current @ 60 Hz
8.12/4.06 A
Nameplate Service Factor @ 60 Hz
1.15
Insulation Class
F
Bearing Type
Ball
Bearing Protection Type
Shaft Slingers
Number of Speeds
1
Usable @ 208V
Not Usable at 208V
NEMA Design Class
B
Motor Enclosure Type
Totally Enclosed Fan Cooled
Application
General Purpose
Constant Torque Rating
4:1
Efficiency Rating
NEMA Premium Efficiency
Bearing Lubrication Type
Permanently Lubricated
Manufacturers Warranty
1 yr

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1170, Frame 213/5, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 8.9/4.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1,101-1,200
