Shop DAYTON

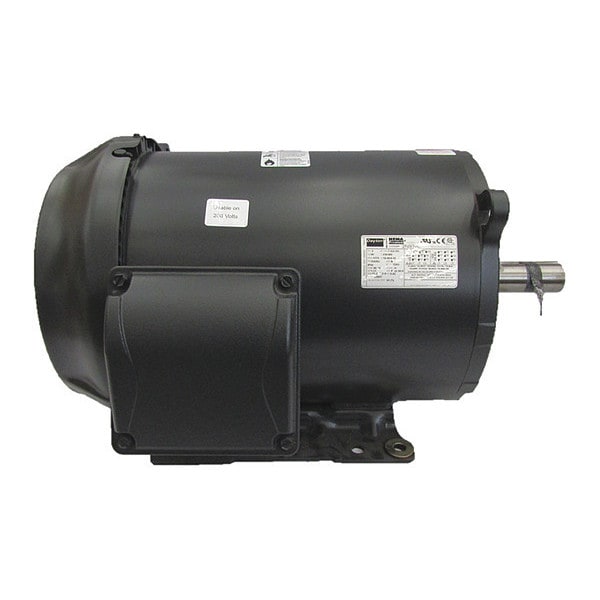

Three-Phase General Purpose Motor, 7 1/2 HP, 254/6U Frame, 230/460V AC Voltage, 1,770 Nameplate RPM

  • Mfr # 2N938

  • Zoro # G1073782

product price:  $1,542.99
/ea
Additional $110.00 delivery surcharge applies per item.
See details

Key Features

HP
7 1/2
Nameplate RPM
1,770
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
18.4/9.2 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2N938
Zoro #
G1073782
UPC #
190735228234
Country of Origin
Mexico

Dimensions

Length Less Shaft
18 1/2 in
Overall Length
23 1/8 in
Shaft Dia.
1 3/8 in
Shaft Length
3 3/4 in
Manufacturers Warranty Length
3 yr
Frame Size
254-6U
Body Diameter
11.52 in
Wire Rope Length
23 1/8 in
Shaft Diameter
1 3/8 in

Details

Item
General Purpose Motor
HP
7 1/2
Nameplate RPM
1,770
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
18.4/9.2 A
Frame
254/6U
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Shaft Design
Keyed
Nominal Efficiency
91.7 %
Standards
CE, CSA (264511), UL (E47479)
CC Number
CC029A
Inverter Rated
Yes
Footnotes
5,10,15
Motor Thermal Protection
None
Duty Cycle
Continuous
Nameplate Service Factor @ 60 Hz
1.15
Full Load Current @ 60 Hz
18.4/9.2 A
Shaft Design
Keyed
Mounting Position
All Angle
Ambient Temperature - Maximum
40 Degrees C
Product Type
General Purpose Motor
Number of Speeds
1
Efficiency Rating
NEMA Premium Efficiency
Includes
Shaft Key
Variable Torque Rating
10:1
Usable @ 200V
Not Usable at 200V
NEMA Design Class
B
Motor Enclosure Type
Totally Enclosed Fan Cooled
Bearing Type
Ball
Inverter Rating
Inverter Rated
Bearing Lubrication Type
Regreasable
Constant Torque Rating
4:1
Bearing Protection Type
Shaft Slingers
Conduit Box Location
Exterior
Application
General Purpose
Manufacturers Warranty
3 yr
Frequency
60 Hz
Insulation Class
F
Usable @ 208V
Not Usable at 208V
Weight
81 7/8 kg

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 1,770, Frame 254/6U, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 18.4/9.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800
