  11. Washdown Motor, TENV, 1 HP, 1750 rpm, 56C

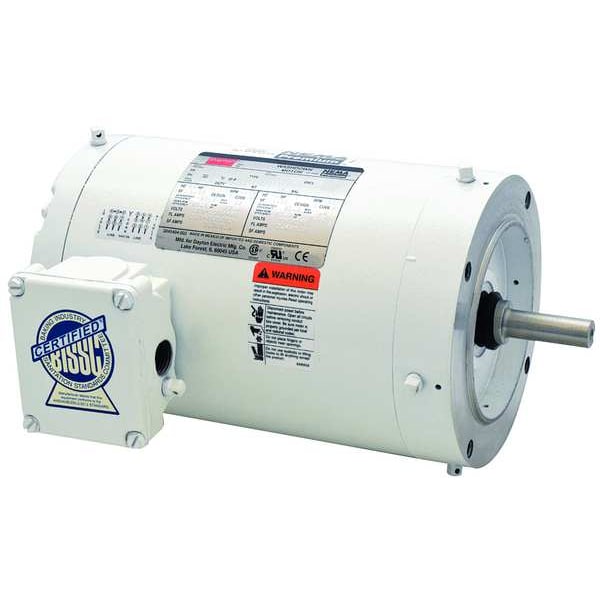

Dayton Washdown Motor, TENV, 1 HP, 1750 rpm, 56C 48ZJ94 - main

Washdown Motor, TENV, 1 HP, 1750 rpm, 56C

  • Mfr # 48ZJ94

  • Zoro # G7469430

product price: $1,011.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
48ZJ94
Zoro #
G7469430
UPC #
190735905197
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Overall Length
12 1/4 in
Body Dia.
6.5 in
Length Less Shaft
10 3/16 in
Shaft Length
1 7/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
1 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56C
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Hz
60/50 Hz
Includes
Shaft Key
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Standards
CSA (258525), UL (E47479)
Nominal Efficiency
85.5 %
Max. Ambient Temp.
40 Degrees C
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Nameplate RPM
1,750 RPM
Frame Material
Rolled steel
Motor Bearings
Ball
Application
Washguard
Duty
Continuous
Endshields
Cast Aluminum
Shaft Material
Stainless Steel
Drain Plugs
(2) in Conduit Box
Full Load Amps
3.1/1.5 A
CC Number
CC030A
Motor Shaft Rotation
CW/CCW
Motor Service Factor
1.15
Inverter Rated
Not Inverter Rated
Conduit Box
Oversize Cast Aluminum with Nitrile Gasket
NEMA Design
B
Motor Application
General Purpose
Motor Mounting Type
C-Face
Endshield Material
Aluminum
Duty Cycle
Continuous
Finish
Epoxy-Coated
Voltage @ 50Hz
190/380V AC

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,750 RPM, Voltage 230/460V AC, Full Load Amps 3.1/1.5 A, 56C Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face, Motor Mounting Position Horizontal, Inverter Rating Not Applicable, Motor Frame Material Steel
