  11. Washdown Motor, 3 Ph, TEFC, 5 HP, 3525 rpm

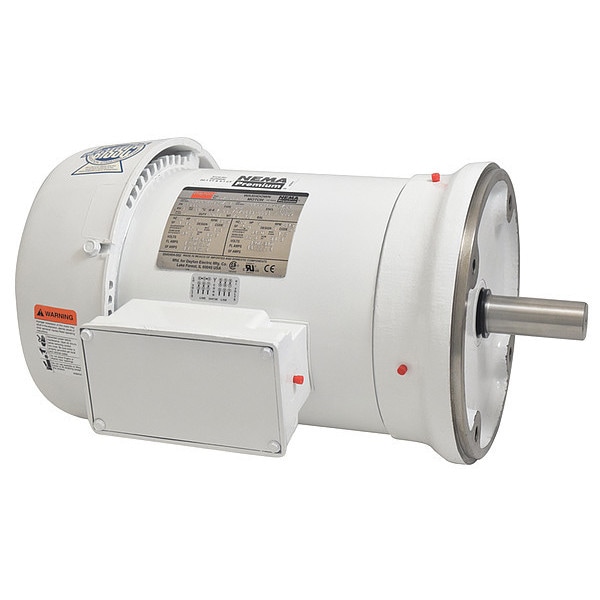

Dayton Washdown Motor, 3 Ph, TEFC, 5 HP, 3525 rpm 5XAU6BG - main

Washdown Motor, 3 Ph, TEFC, 5 HP, 3525 rpm

  • Mfr # 5XAU6BG

  • Zoro # G2736124

product price: $2,348.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
5 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5XAU6BG
Zoro #
G2736124
UPC #
190735355589
Country of Origin
Mexico

Dimensions

Length Less Shaft
14 1/8 in
Shaft Length
2 5/8 in
Overall Length
16 3/4 in
Body Dia.
9 in
Shaft Dia.
1 1/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
5 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
184TC
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Shaft Material
303
Drain Plugs
(2) in Conduit Box, (4) Lead End, (4) Shaft End
Motor Service Factor
1.15
Endshields
Cast Aluminum
Standards
CSA Certified (258525), UL Recognized (E47479), USDA Approved
Inverter Rated
Inverter Rated
Motor Shaft Rotation
CW/CCW
Frame Material
Epoxy Coated
Motor Application
General Purpose
NEMA Design
B
Ins. Class
F
Motor Mounting Position
Horizontal
Footnotes
2, 12
Conduit Box
Cast Aluminum with Buna-N Gasketed Cover
Hz
60/50 Hz
Motor Mounting Type
C-Face
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Max. Ambient Temp.
40 Degrees C
Application
High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns
Motor Bearings
Ball
CC Number
CC030A
Nameplate RPM
3,525 RPM
Full Load Amps
12.0/6.0 A
Nominal Efficiency
89.5 %
Motor Shaft Design
Keyed
Endshield Material
Aluminum
Voltage @ 50Hz
190/380V AC
Finish
Epoxy-Coated

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 3,525 RPM, Voltage 230/460V AC, Full Load Amps 12.0/6.0 A, 184TC Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Motor Mounting Position Horizontal, Motor Frame Material Steel, Endshield Material Aluminum
