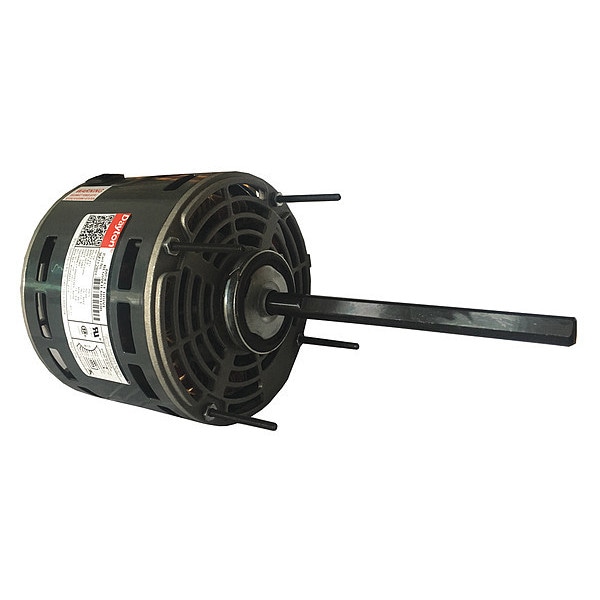

Motor, 1/4hp, D/D Blower

DAYTON| Zoro #: G0668726| Mfr #: 3M712

$120.20 /ea

This item ships free. Details.Standard ground shipping.
Details:
Bolt Circle Dia.: 5-1/8"
Shaft Dia.: 1/2"
Application: Blowers, Fans and Air Circulators
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G0668726 Mfr #: 3M712
Bolt Circle Dia.: 5-1/8"Shaft Dia.: 1/2"
Application: Blowers, Fans and Air CirculatorsShaft Length: 6"
Motor Application: HVAC/RCapacitor Required: 2MDV3
Duty: ContinuousMotor Thermal Protection: Auto
Motor Shaft Rotation: CWRPM Range: 1001-1100
Ring to Ring Center: 5-1/4"Standards: UL Component Recognition (E37403) and CSA Certification (258501)
Motor Mounting Type: Ring/StudLength Less Shaft: 5-11/16"
Body Dia.: 5-5/8"Item: Direct Drive Blower Motor
Motor Design: Permanent Split CapacitorPhase: 1
Resilient Ring Dia.: 2-1/4"Motor Enclosure Design: Open Air-Over
Overall Length: 11-7/16"Motor Service Factor: 1.00
Voltage Compatibility: 265, 277, 208-230/277, 277/230Motor Mounting Position: All Angle
Full Load Amps: 2.0Hz: 60
Motor Bearings: SleeveHP: 1/4
No. of Speeds: 3Ins. Class: B
Includes: Split Rings to Increase Ring Diameter to 2 1/2"Motor Shaft Design: Double-Flat
Max. Ambient Temp.: 40 Degrees CFrame: 48YZ
Motor Sub Application: Direct Drive Fan/BlowerVoltage: 277
Nameplate RPM: 1075Nominal Efficiency: 51.60%
Country of Origin (subject to change): China

Description

Direct Drive Blower Motor, Permanent Split Capacitor Motor Type, Open Air-Over Enclosure, 1/4 HP, 1075 Nameplate RPM, Voltage 277, 1.5 Full Load Amps, 60 Hz, 1 Phase, 48YZ Frame, Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Insulation Class B, Duty Continuous, Number of Speeds 3, Mounting Stud, Bearings Sleeve, Thermal Protection Auto, Rotation CW/CCW, Body Dia. 5-5/8 In., Length Less Shaft 5-11/16 In., Overall Length 11-11/16 In., Shaft Dia. 1/2 In., Shaft Length 6 In.
