  11. Washdown Motor, 3 Ph, TENV, 3/4 HP, 1725 rpm

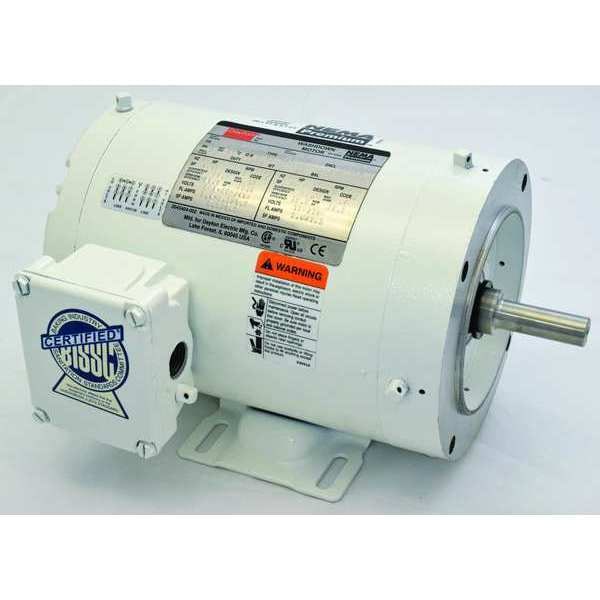

Dayton Washdown Motor, 3 Ph, TENV, 3/4 HP, 1725 rpm 1TRZ4 - main

Washdown Motor, 3 Ph, TENV, 3/4 HP, 1725 rpm

  • Mfr # 1TRZ4

  • Zoro # G0893487

product price: $899.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1TRZ4
Zoro #
G0893487
UPC #
190735147672
Country of Origin
Mexico

Dimensions

Overall Length
10 9/16 in
Shaft Dia.
5/8 in
Shaft Length
2 in
Length Less Shaft
9 1/4 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
3/4 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56C
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Full Load Amps
2.3/1.2 A
Shaft Material
303
Motor Mounting Type
C-Face, Rigid Base
Standards
CSA Certified (LR63596), UL Recognized (E47479), USDA Approved
Frame Material
Epoxy Coated
Motor Service Factor
1.15
Drain Plugs
(2) in Conduit Box, (4) Each End
Max. Ambient Temp.
40 Degrees C
Hz
60 Hz
Conduit Box
Cast Oversized Gasketed
Inverter Rated
Inverter Rated
Duty
Continuous
Motor Bearings
Ball
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Nominal Efficiency
81.5 %
Motor Shaft Rotation
CW/CCW
CC Number
CC030A
Ins. Class
F
Motor Shaft Design
Keyed
Nameplate RPM
1,745 RPM
Motor Mounting Position
Horizontal
NEMA Design
B
Motor Application
General Purpose
No. of Speeds
1
Duty Cycle
Continuous
Finish
Epoxy-Coated

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.3/1.2 A, 56C Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face, Rigid Base, Motor Mounting Position Horizontal
