  11. Washdown Mtr, 3 Ph, TEFC, 7-1/2 HP, 1765 rpm

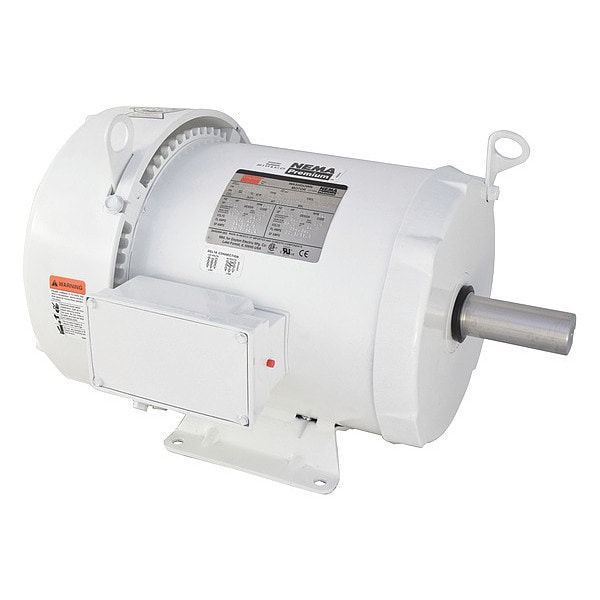

Dayton Washdown Mtr, 3 Ph, TEFC, 7-1/2 HP, 1765 rpm 5XAV2BG - main

Washdown Mtr, 3 Ph, TEFC, 7-1/2 HP, 1765 rpm

  • Mfr # 5XAV2BG

  • Zoro # G1526052

product price: $3,401.99
/ea
Additional $145.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Motor Frame Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5XAV2BG
Zoro #
G1526052
UPC #
190735355640
Country of Origin
Mexico

Dimensions

Shaft Length
3 5/8 in
Overall Length
18 1/4 in
Shaft Dia.
1 3/8 in
Body Dia.
9.63 in
Length Less Shaft
14 5/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
7 1/2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
213T
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Standards
CSA Certified (258525), UL Recognized (E47479), USDA Approved
Motor Mounting Position
Horizontal
Motor Shaft Rotation
CW/CCW
Duty
Continuous
Motor Application
General Purpose
NEMA Design
B
Application
High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Shaft Design
Keyed
Hz
60/50 Hz
Endshields
Cast Aluminum
Motor Mounting Type
Rigid Base
CC Number
CC030A
Shaft Material
303
Ins. Class
F
Full Load Amps
18.2/9.1 A
Max. Ambient Temp.
40 Degrees C
Motor Bearings
Ball
Inverter Rated
Inverter Rated
Footnotes
8, 11
Nameplate RPM
1,765 RPM
Drain Plugs
(1) Lead End, (1) Shaft End, (2) in Conduit Box
Motor Service Factor
1.15
Nominal Efficiency
91.7 %
Frame Material
Epoxy Coated
Conduit Box
Cast Aluminum with Buna-N Gasketed Cover
Endshield Material
Aluminum
Duty Cycle
Continuous
Voltage @ 50Hz
190/380V AC
Finish
Epoxy-Coated

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 7 1/2 hp HP, Nameplate RPM 1,765 RPM, Voltage 230/460V AC, Full Load Amps 18.2/9.1 A, 213T Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
