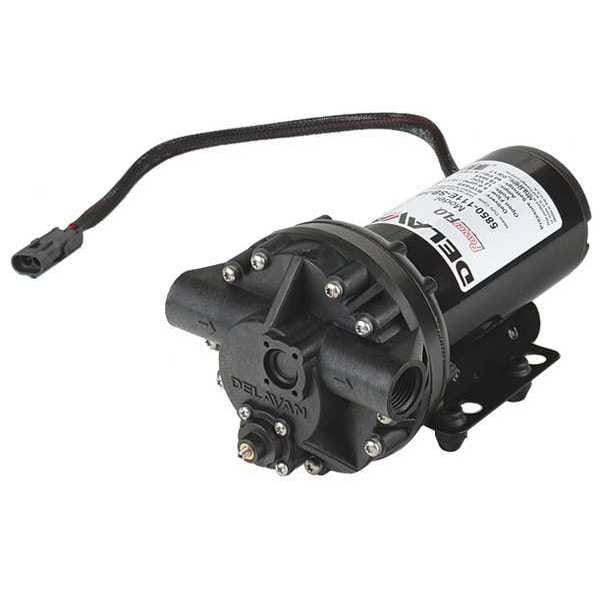

Diaphragm Pump, Polypropylene, Santoprene, 12VDC, 5.0 GPM 140 Degrees F

  • Mfr # 5850-111E-SB-HS

  • Zoro # G1593197

product price:
$
176.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Polypropylene
Valve Material
Viton®
Air Intake Connection Size
1/2 in FNPT
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5850-111E-SB-HS
Zoro #
G1593197
UPC #
830344009236
Country of Origin
United States
Item
Diaphragm Pump
Housing Material - Pumps
Polypropylene
Valve Material
Viton®
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
Operating Pressure (Maximum)
60 psi
Fuse Amps
16 A
Pressure Switch
No
Features
Heat Sink On Motor to Keep It Cool
Pressure Off
100 psi
Type
Diaphragm
Prime in Feet
8
Diaphragm Design
Five Chamber
Agency Compliance
CE/NSF
Inlet/Outlet
1/2 FNPT
Motor Type
Totally enclosed Nonventilated
Pressure On
20 psi
Pump Operation Type
Electric
Standards
NSF Certified
Nameplate Voltage
12V DC
Current
16 A
Motor Enclosure
Totally Enclosed Non-Ventilated
Diaphragm Chamber Design
5
Flow Rate @ 0 psi
5.4 gpm
Flow Rate @ 40 psi
3.2 gpm
Flow Rate @ 20 psi
4.1 gpm
Priming
Self-Priming
Series
5800
Flow Rate (Maximum)
5 gpm
Media Discharge Connection Type
FNPT
Media Intake Connection Type
FNPT
Discharge Connection Type
FNPT
Housing Material
Polypropylene
Intake Connection Type
FNPT
Check Valve Material
FKM
Power Source
Electric
Includes Heat Sink
Heat Sink Included
Pump Control Type
Bypass
Fluid Head Material
Polypropylene
Number of Diaphragms
1
Includes Gearbox
No Gearbox Included
Electrical Connection Type
Two-Pin Molded Connector
Pumping Application
Boom Spraying, Chemical Transfer, Deicing, Disinfectant/Sanitizer Spraying, Fertilizer Application, Herbicide Spraying, Irrigation, Lawn Care, Orchard Spraying, Pest Control, Pesticide Spraying, Soft Wash, Turf Spraying, Vineyard Spraying, Water Transfer
Chemical Compatibility
Fertilizer, Herbicide
Feet of Head (Maximum)
138.4 ft
Media Temperature - Maximum
140 Degrees F
Pump Drive Configuration
Electric Motor Unit
Motor Speed - Maximum
2,200 RPM
Pump Technology
Diaphragm
Phase
Single
Bypass Pressure
10 psi
Discharge Pressure - Maximum
60 psi
Self-Priming Lift - Maximum
12 ft
Gasket Material
FKM
Includes Regulator
No Regulator Included
Full Load Current
22.5
Power Source - TS Only
Electric
Power Source - old
Electric

Description

Diaphragm Pump, Operating Pressure (Maximum) 60 psi, Diaphragm Chamber Design 5, Diaphragm Material Santoprene, Check Valve Material Viton, Discharge Connection Size 1/2 in, Discharge Connection Type FNPT, Flow Rate (Maximum) 5 gpm, Housing Material Polypropylene, Intake Connection Size 1/2 in, Intake Connection Type FNPT, Nameplate Voltage 12V DC, Priming Self-Priming, Pump Operation Type Electric, Pressure Switch No, Standards NSF Certified, Flow Rate @ 20 psi 4.1 gpm, Current 16 A
