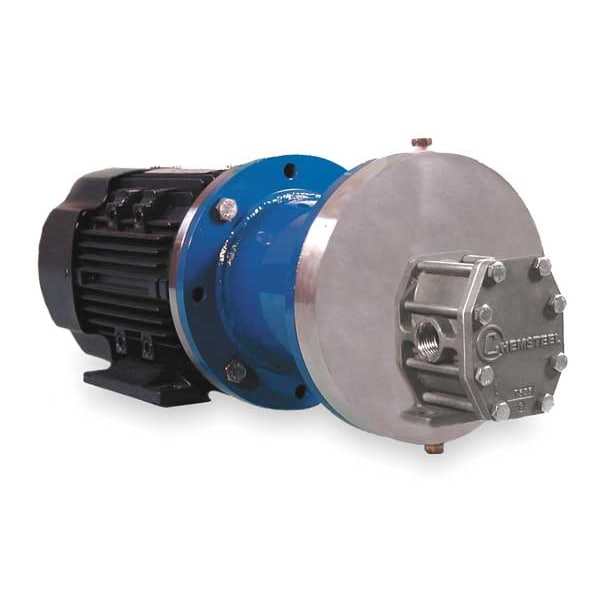

3/4 HP Stainless Steel Magnetic Drive Gear Pump 115/230V
Mfr # SM20716CWM1-M47
Zoro # G8262597
product price:Â
$
8,403.99
/ea
Free Shipping & Returns
Key Features
Type
Magnetic Drive
HP
3/4 hp
Voltage
115/230
Length (In.)
18.07 in
Width (In.)
7 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SM20716CWM1-M47
- Zoro #
- G8262597
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Length (In.)
- 18.07 in
- Width (In.)
- 7 in
- Port Size (In.)
- 1/2 in
- Height (In.)
- 6.81 in
- Manufacturers Warranty Length
- 1 yr
- Overall Height
- 6.8 in
- Overall Width
- 7 in
- Overall Length
- 18.1 in
- Media Discharge Connection Size
- 1/2 in
- Media Intake Connection Size
- 1/2 in
- Discharge Diameter
- 1/2 in
- Inlet Diameter
- 1/2 in
- For Motor Frame Size
- 56C
- Wire Rope Length
- 18.1 in
- Length
- 18.1 in
Description
Rotary Gear Pump, Operating Pressure - Maximum 110 psi, Viscosity - Maximum 100 SUS, Phase Single, Nameplate Voltage 115/230V AC, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower - Maximum 3/4 hp, Operating Temperature - Minimum -50 Degrees F, Operating Temperature - Maximum 450 Degrees F, Media Intake Connection Size 1/2 in, Media Intake Connection Type FNPT, Media Discharge Connection Size 1/2 in, Media Discharge Connection Type FNPT, Gear Design Helical
Restrictions
Hazardous material
