Shop DELAVAN FLUID POWER

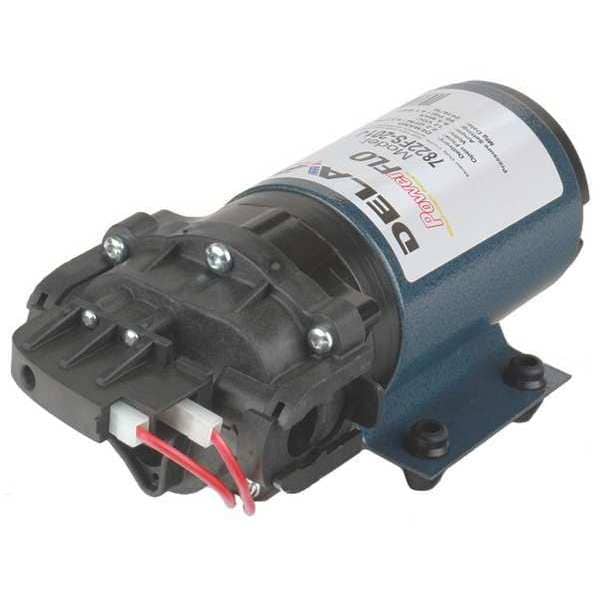

Diaphragm Pump, Polypropylene, Santoprene(R), 12VDC, 2.2 GPM

  • Mfr # 7822FS-201-SBI

  • Zoro # G1593757

product price:
$
86.69
/ea

Key Features

Housing Material - Pumps
Polypropylene
Valve Material
Viton®
Air Intake Connection Size
3/4 in QC
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7822FS-201-SBI
Zoro #
G1593757
UPC #
830344009588
Country of Origin
China

Dimensions

Air Intake Connection Size
3/4 in QC
Overall Width
4 in
Overall Length
8.5 in
Overall Height
3.5 in
Media Discharge Connection Size
3/4 in
Media Intake Connection Size
3/4 in
Intake Connection Size
3/4 in
Discharge Connection Size
3/4 in
Shaft Outer Diameter
8 mm
Discharge Diameter
3/4 in
Inlet Diameter
3/4 in
Wire Rope Length
8.5 in
Length
8.5 in

Details

Item
Diaphragm Pump
Housing Material - Pumps
Polypropylene
Valve Material
Viton®
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
Operating Pressure (Maximum)
60 psi
Prime in Feet
8
Agency Compliance
CE/NSF
Type
Diaphragm
Motor Type
Totally enclosed Nonventilated
Pressure Off
60 psi
Inlet/Outlet
3/4 QC
Fuse Amps
8.5 A
Pressure On
20 psi
Diaphragm Design
Three Chamber
Pressure Switch
Yes
Standards
NSF Certified
Pump Operation Type
Electric
Diaphragm Chamber Design
3
Nameplate Voltage
12V DC
Flow Rate @ 20 psi
2.1 gpm
Series
7800
Flow Rate (Maximum)
2.2 gpm
Motor Enclosure
Totally Enclosed Non-Ventilated
Priming
Self-Priming
Current
8.5 A
Flow Rate @ 40 psi
1.8 gpm
Flow Rate @ 0 psi
2.2 gpm
Media Intake Connection Type
Quick Connect
Media Discharge Connection Type
Quick Connect
Housing Material
Polypropylene
Check Valve Material
FKM
Discharge Connection Type
Quick Connect
Intake Connection Type
Quick Connect
Number of Diaphragms
1
Full Load Current
22.5
Pumping Application
Boom Spraying, Chemical Transfer, Deicing, Disinfectant/Sanitizer Spraying, Fertilizer Application, Herbicide Spraying, Irrigation, Lawn Care, Orchard Spraying, Pest Control, Pesticide Spraying, Soft Wash, Turf Spraying, Vineyard Spraying, Water Transfer
Pressure Switch Off Pressure
60 psi
Pressure Switch On Pressure
50 psi
Includes Regulator
No Regulator Included
Chemical Compatibility
Fertilizer, Herbicide
Inlet Standard
Quick Connect
Media Temperature - Maximum
140 Degrees F
Discharge Pressure - Maximum
60 psi
Fluid Head Material
Polypropylene
Self-Priming Lift - Maximum
12 ft
Includes Gearbox
No Gearbox Included
Pump Technology
Diaphragm
Pump Drive Configuration
Electric Motor Unit
Electrical Connection Type
Power Cord with Plug
Pump Control Type
Demand
Includes Heat Sink
No Heat Sink Included
Feet of Head (Maximum)
138.4 ft
Phase
Single
Motor Speed - Maximum
2,200 RPM
Gasket Material
FKM
Power Source
Electric
Discharge Standard
Quick Connect
Power Source - TS Only
Electric
Power Source - old
Electric

Description

Diaphragm Pump, Operating Pressure (Maximum) 60 psi, Diaphragm Chamber Design 3, Diaphragm Material Santoprene, Check Valve Material FKM, Discharge Connection Size 3/4 in, Discharge Connection Type Quick Connect, Flow Rate (Maximum) 2.2 gpm, Housing Material Polypropylene, Intake Connection Size 3/4 in, Intake Connection Type Quick Connect, Nameplate Voltage 12V DC, Priming Self-Priming, Pump Operation Type Electric, Pressure Switch Yes, Standards NSF Certified, Feet of Head (Maximum) 138.4 ft
