Shop DELAVAN FLUID POWER

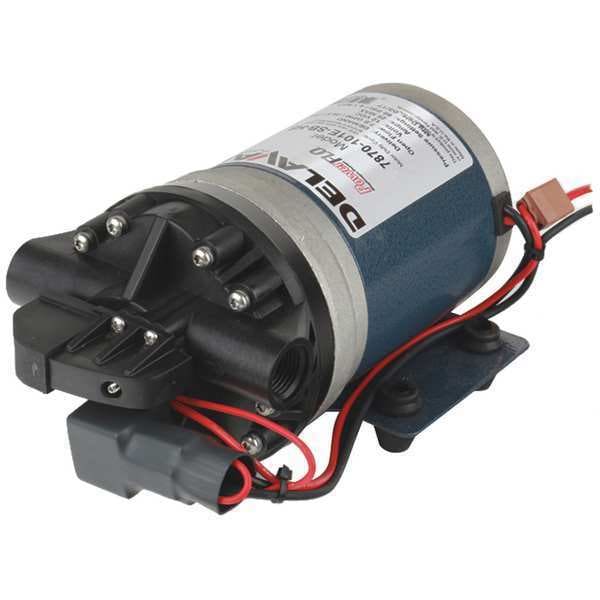

Diaphragm Pump, Polypropylene, Santoprene, 12VDC, 7.0 GPM

  • Mfr # 7870-101E-SB-HS

  • Zoro # G1593693

product price:  $223.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Polypropylene
Valve Material
Santoprene®
Air Intake Connection Size
1/2 in FNPT
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
7870-101E-SB-HS
Zoro #
G1593693
UPC #
830344009281
Country of Origin
United States

Dimensions

Air Intake Connection Size
1/2 in FNPT
Overall Height
4.8 in
Overall Length
9.1 in
Overall Width
5.5 in
Media Discharge Connection Size
1/2 in
Media Intake Connection Size
1/2 in
Intake Connection Size
1/2 in
Discharge Connection Size
1/2 in
Inlet Diameter
1/2 in
Discharge Diameter
1/2 in
Shaft Outer Diameter
8 mm

Details

Item
Diaphragm Pump
Housing Material - Pumps
Polypropylene
Valve Material
Santoprene®
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
Operating Pressure (Maximum)
60 psi
Pressure Off
100 psi
Motor Type
Totally enclosed Nonventilated
Type
Diaphragm
Diaphragm Design
Five Chamber
Pressure Switch
Yes
Agency Compliance
CE/NSF
Pressure On
20 psi
Fuse Amps
30 A
Prime in Feet
8
Inlet/Outlet
1/2 FNPT
Features
Heat Sink On Motor to Keep It Cool, FB2 Series
Standards
NSF Certified
Pump Operation Type
Electric
Flow Rate @ 40 psi
5.5 gpm
Flow Rate @ 0 psi
7.2 gpm
Current
30 A
Motor Enclosure
Totally Enclosed Non-Ventilated
Diaphragm Chamber Design
5
Nameplate Voltage
12V DC
Flow Rate (Maximum)
7 gpm
Series
FB2
Flow Rate @ 20 psi
6.3 gpm
Priming
Self-Priming
Media Discharge Connection Type
FNPT
Media Intake Connection Type
FNPT
Housing Material
Polypropylene
Intake Connection Type
FNPT
Discharge Connection Type
FNPT
Check Valve Material
Santoprene
Includes Regulator
No Regulator Included
Fluid Head Material
Polypropylene
Gasket Material
FKM
Phase
Single
Includes Heat Sink
Heat Sink Included
Chemical Compatibility
Fertilizer, Herbicide
Self-Priming Lift - Maximum
12 ft
Motor Speed - Maximum
2,200 RPM
Full Load Current
22.5
Includes Gearbox
No Gearbox Included
Pressure Switch On Pressure
50 psi
Pump Technology
Diaphragm
Electrical Connection Type
Two-Pin Molded Connector
Media Temperature - Maximum
140 Degrees F
Discharge Pressure - Maximum
60 psi
Number of Diaphragms
1
Pumping Application
Boom Spraying, Chemical Transfer, Deicing, Disinfectant/Sanitizer Spraying, Fertilizer Application, Herbicide Spraying, Irrigation, Lawn Care, Orchard Spraying, Pest Control, Pesticide Spraying, Soft Wash, Turf Spraying, Vineyard Spraying, Water Transfer
Power Source
Electric
Pump Control Type
Demand
Pump Drive Configuration
Electric Motor Unit
Feet of Head (Maximum)
138.4 ft
Pressure Switch Off Pressure
60 psi
Power Source - TS Only
Electric

Description

Diaphragm Pump, Operating Pressure (Maximum) 60 psi, Diaphragm Chamber Design 5, Diaphragm Material Santoprene, Check Valve Material Santoprene, Discharge Connection Size 1/2 in, Discharge Connection Type FNPT, Flow Rate (Maximum) 7 gpm, Housing Material Polypropylene, Intake Connection Size 1/2 in, Intake Connection Type FNPT, Nameplate Voltage 12V DC, Priming Self-Priming, Pump Operation Type Electric, Pressure Switch Yes, Standards NSF Certified, Flow Rate @ 20 psi 6.3 gpm, Current 30 A
