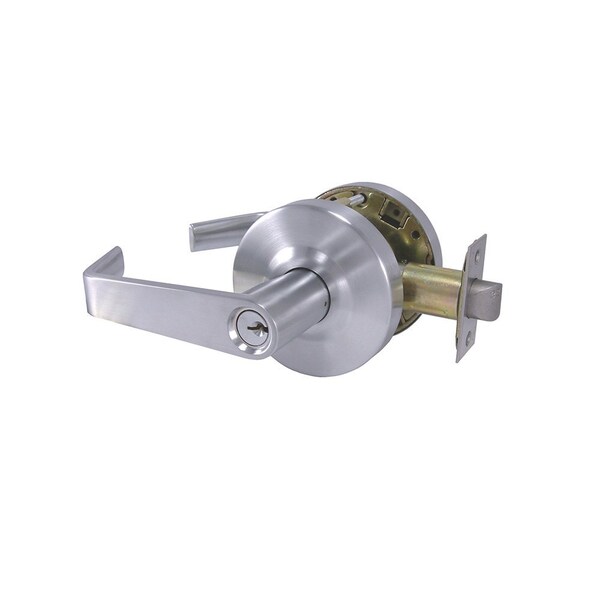

Door Lever Lockset, 1 3/8-1 3/4" Thick

Name: Door Lever Lockset, 1 3/8-1 3/4" Thick
Brand: Design Hardware
SKU: G609481146
Price: 157.99 USD
Availability: InStock

157.99

/ea

Free Shipping & Returns

Cylinder Core Type

Conventional Core Cylinder

Number of Keys

Standards

ANSI A156.2, UL Listed

ANSI Grade

Latch Bolt/Dead Bolt

Dead Latch

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

MFR #: DH-X-86-F-10B
Zoro #: G609481146
UPC #: -
Country of Origin: China
Cylinder Core Type: Conventional Core Cylinder
Number of Keys: 2
Standards: ANSI A156.2, UL Listed
ANSI Grade: 1
Latch Bolt/Dead Bolt: Dead Latch
Visual Indicator Message: No Message
Application: Medium to High Traffic
Locking/Unlocking Access - Outside: Keyway
Trim Plate Shape: Round
Includes Hardware: Hardware Included
Includes Core: Core Included
Locking/Unlocking Access - Inside: Not Lockable
ADA Compliant: Yes
Includes: (2) Keys, Combination Screws for Wood or Metal Doors and Frames
Backset: 2 3/4 in
Lockset Style: Rose
Item: Door Lever Lockset
Number of Pins: 6
ANSI/BHMA Finish: Dark Oxidized Satin Bronze, Oil Rubbed
Mortise/Cylindrical: Cylindrical
Lockset Type: Mechanical
Lockset Function ANSI Code: F86
Ligature-Resistant: Not Ligature-Resistant
Lockset Handle Type: Lever
Lockset Function: Storeroom
Hand Orientation: Non-Handed
Keyway Type: Schlage C
Features: Anti-Sag Mechanism with Independent Lever Return Springs to Prevent Lever Sag, Clutching Levers Standard for Vandal Resistance on Locking Functions

Door Thickness - Minimum: 1 3/8 in
Strike Plate Width: 1 1/4 in
Fits Chest Size: Anti-Sag Mechanism with Independent Lever Return Springs to Prevent Lever Sag, Clutching Levers Standard for Vandal Resistance on Locking Functions
Strike Plate Lip Length: 1 1/4 in
Door Thickness - Maximum: 1 3/4 in
Strike Plate Height: 4 7/8 in
