CAD Drawings
Download CAD Files

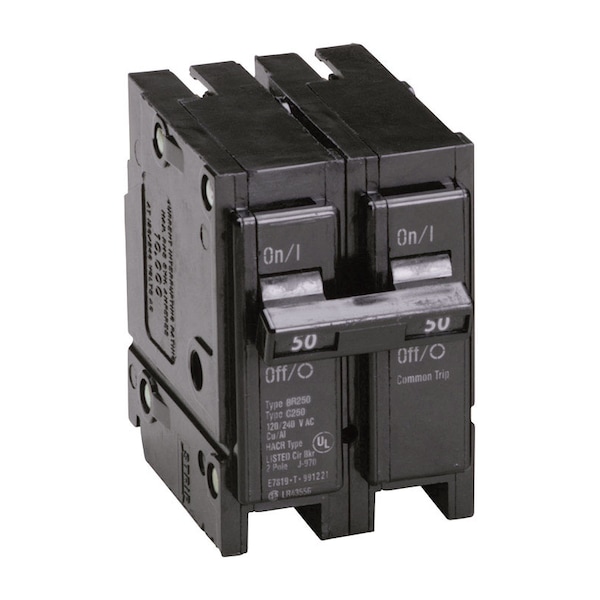

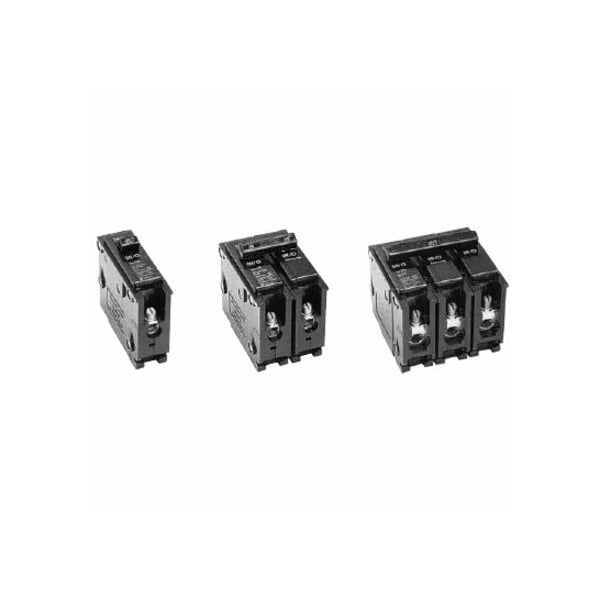

Circuit Breaker, BR Series, 50A, 2 Pole, 120/240V AC, 10kA
Mfr # BR250
Zoro # G8659337
CAD Available
product price: $21.86
/eaKey Features
CAD Drawing
Series
BR
Amps
50A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Mounting Style
Plug In
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
BR250
Zoro #
G8659337
UPC #
786676363051
Country of Origin
Dominican Republic
Dimensions
Width
2 in
Depth
3 in
Height
3 in
Min. Wire Size
14 AWG (Cu/Al)
Max. Wire Size
4 AWG (Cu/Al)
Wire Size
#14-4 AWG Cu/Al
Frame Size
BR
Details
Item
Circuit Breaker
Series
BR
Amps
50A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA
Trip Type
Common
DC Voltage Rating
Not Rated
Interrupt Rating
10 kA
For Use With
Type BR Loadcenters
Certifications
UL 489
Compliances
Federal Specifications Classification W-C375
CAD Available
Yes
Description
The Eaton Cutler-Hammer 50 ampere 2 inch. Double-Pole Type BR Replacement Circuit Breaker trips to the center position and has a maximum load of 240-volt. The UL-listed circuit breaker is compatible with Westinghouse, challenger and Bryant load centers. The breaker is designed for overload and short-circuit protection of your home electrical system.
- • Double Pole
- • Heating and AC Rated (HACR)
- • Visual Trip Position
- • 1" Format
- •
