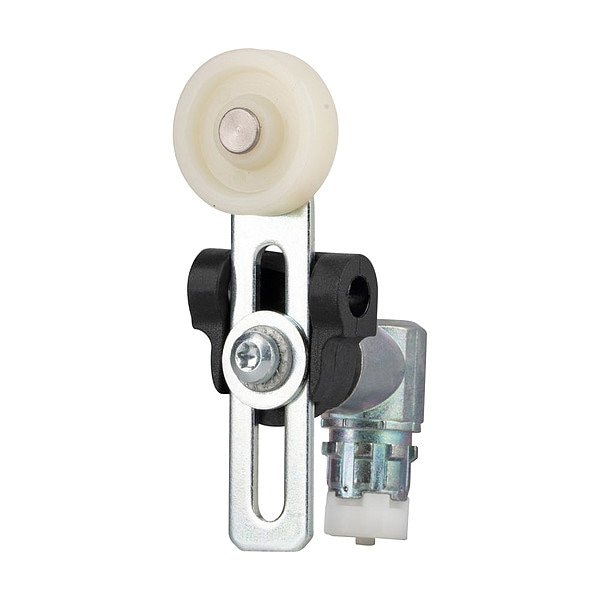

Limit Switch
Mfr # E49UP7
Zoro # G023355559
product price:Â
$
40.99
/ea
Key Features
NEMA Enclosure Rating
1, 13, 3, 3S, 4, 4X, 6, 6P
Arm Material
Metal
Operating Force
8 N
Standards
CE Certified, CSA Certified, IEC Certified, RoHS Compliant, UKCA Certified, UL Listed
Arm Length - Minimum
0.63 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- E49UP7
- Zoro #
- G023355559
- UPC #
- 782113742014
- Country of Origin
- Germany
- NEMA Enclosure Rating
- 1, 13, 3, 3S, 4, 4X, 6, 6P
- Arm Material
- Metal
- Operating Force
- 8 N
- Standards
- CE Certified, CSA Certified, IEC Certified, RoHS Compliant, UKCA Certified, UL Listed
- Operating Torque
- 8.88 in-lb
- Action
- Momentary
- Roller Material
- Nylon
- Operating Temperature - Maximum
- 176 Degrees F
- Directional Movement
- CCW/CW
- Operating Temperature - Minimum
- -22 Degrees F
- Item
- Limit Switch Head
- Series
- E49
- Arm Adjustability
- Adjustable
- Features
- High Mechanical Strength, Pre-Wired
- Includes Actuator
- Actuator Included
- Roller Position
- Side
- Roller Adjustability
- Adjustable
- IP Rating
- IP65
- Actuator Style
- Roller-Lever Arm
Description
Limit Switch Head, Actuator Style Roller-Lever Arm, Actuator Location Side, Actuator Length 2.03 in, Operating Force 8 N, IP Rating IP65, Standards CE Certified, CSA Certified, IEC Certified, RoHS Compliant, UKCA Certified, UL Listed
