  15. Limit Switch Head, Wbble Stck, Top, 4.33 In

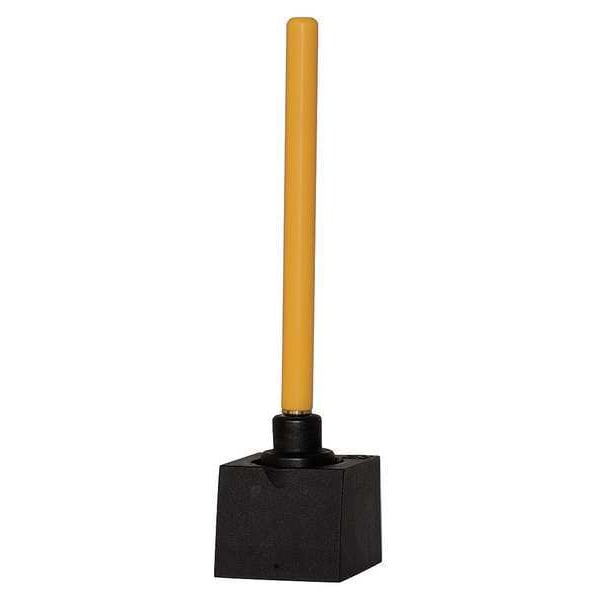

Eaton Limit Switch Head, Wbble Stck, Top, 4.33 In LS-XOR - main

Limit Switch Head, Wbble Stck, Top, 4.33 In

  • Mfr # LS-XOR

  • Zoro # G7015565

product price: $55.49
/ea

Key Features

Actuator Style
Rod
Actuator Location
Top
Actuator Length
4.33 in
For Use With
LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A, Mfr. No. LS-S02
NEMA Rating
1, 12, 13, 2, 4, 4X, 6
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LS-XOR
Zoro #
G7015565
UPC #
786685393544
Country of Origin
Germany

Dimensions

Actuator Length
4.33 in
Product Length/Depth
.94 in
Product Height
4.12 in
Product Width
.98 in
Overall Width
0.98 in
Overall Height
4.12 in
Manufacturer Warranty Length
1 yr
Overall Depth
0.94 in
Arm Length - Maximum
4.33 in
Arm Length - Minimum
4.96 in

Details

Item
Limit Switch Head
Actuator Style
Rod
Actuator Location
Top
For Use With
LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A, Mfr. No. LS-S02
NEMA Rating
1, 12, 13, 2, 4, 4X, 6
Movement
Vertical
Operating Temp.
-13 Degrees to 158 Degrees F
Description/Special Features
Momentary
Standards
RoHS, UL Listed
Travel
Operating Travel 43 Degrees , Reset Travel 22 Degrees , Total Travel 65 Degrees
Voltage Rating
415V AC
Amps
10
Operating Force
1 N
IP Rating
IP66, IP67
Type
LS-Titan
Operating temperature - max
158°F
Environmental rating
IP66, IP67
Certifications
UL Listed
Operating temperature - min
-13°F
Switch type
Actuating rod, operator only
Product Name
Eaton LS-Titan miniature DIN limit switch
Directional Movement
Omnidirectional
Overtravel
43 Degrees
Action
Momentary
NEMA Enclosure Rating
1, 12, 13, 2, 4, 4X, 6
Series
LS
Pretravel
20 Degrees
Arm Material
Metal
Differential Travel
26 Degrees
Operating Temperature - Maximum
158 Degrees F
Compatible with Brand
Eaton
Operating Temperature - Minimum
-13 Degrees F
Arm Adjustability
Fixed
Total Travel
65 Degrees
Includes Actuator
Actuator Included
Compatible with Series
LS-Titan
Reset Travel
22 Degrees
Compatible with Manufacturer Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Operating Torque
8.88 in-lb
Compatible Manufacturer Part Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible Manufacturer Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible with Manufacturer Model No.
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible with Mfr. Model No.
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
For Use with Mfr Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
For Use With Mfr. Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible Pump Manufacturer Part Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible Mfr. Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A

Description

Limit Switch Head, Actuator Style Rod, Actuator Location Top, Actuator Length 4.33 in, Contact Form Not Applicable, Amps 10, Voltage Rating 415V AC, Travel Operating Travel 43 Degrees , Reset Travel 22 Degrees , Total Travel 65 Degrees , Movement Vertical, Operating Force 1 N, Operating Temp. -13 Degrees to 158 Degrees F, NEMA Rating 1, 12, 13, 2, 4, 4X, 6, IP Rating IP66, IP67, Standards RoHS, UL Listed
