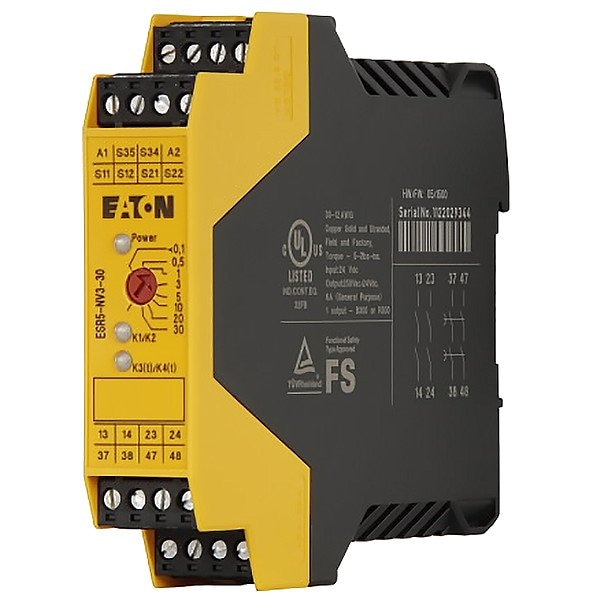

Safety Relay, 5 A at 240 VAC, 2NO/2NC, 2 Input

  • Mfr # ESR5-NV3-30

  • Zoro # G405748030

product price:
$
582.99
/ea
Free Shipping & Returns

Key Features

Input or Control Voltage
24 V DC
AC Contact Rating - Relay
5.0 A@240 VAC
DC Contact Rating - Relay
6.0 A@24 VDC
Mounting - Relay
DIN Rail
Output Switch Configuration - Relay
(2) NO and (2) NC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ESR5-NV3-30
Zoro #
G405748030
UPC #
-
Country of Origin
Germany
Item
Safety Monitoring Relay
Input or Control Voltage
24 V DC
AC Contact Rating - Relay
5.0 A@240 VAC
DC Contact Rating - Relay
6.0 A@24 VDC
Mounting - Relay
DIN Rail
Output Switch Configuration - Relay
(2) NO and (2) NC
Input Power Consumption (Burden)
0.4 W
Number of Inputs - Relay
2
Use With - Relay
Coded Magnetic Safety Interlock Switch, E Stop, Limit Switch, Rope Pulls, Light Curtain (OSSD) All Easy Series Relays, Two Hand Control
Delay Time - Relay
Adjustable 0.10 to 30.00 sec
Response Time
150 msec
For Use With
Coded Magnetic Safety Interlock Switch, Emergency Stop, Light Curtain (OSSD) all Easy Series Relays, Limit Switch, Rope Pulls, Two Hand Control
Response Time - Relay
150 msec
Input Voltage
24V DC
Power Consumption
0.4 W
Standards
CE Certified, CSA Certified, IEC Rated, UL Listed
Number of Pins - Relay
16
Electrical Connection - Relay
Plug-In Screw Terminals
Environmental Protection
Dust & Splash Resistant
IP Rating
IP20; IP54
Connection Type
M3 screw terminals
Item - Relay
Safety Relay
Minimum Operating Temperature
-4 Degrees F
Electrical Connection
Screw Terminal, Terminal Block Removable
Mounting Style
DIN Rail
Application
Emergency Stop, Gate Enable Device, Light Curtain (OSSD), Rope Pulls, Safety Switches, Two-Hand Control Stations
Weight
9.6 oz
Contact Rating (DC)
5 A @ 24V
Delay Time
0.1 to 30 sec
Maximum Operating Temperature
131 Degrees F
Number of Pins
16
Output Switch Configuration
(2) NC, (2) NO
Delay Type
Adjustable
Contact Rating (AC)
5 A @ 240V
Frequency
50/60 Hz
Number of Inputs
2
Compliances
CE Marked
Certifications
UL Listed
Control Voltage 2 Type
DC
Features
Automatic start; Manual start; Basic insulation; 2 Non-delayed enable current paths
Stop Category (IEC 60204)
0; 1
Control Voltage 2 - Max
24 V
Number Of Outputs (Signaling Function, Undelayed) With Contact
0
Short-Circuit Current
0.1 A, Input data
Degree Of Protection
Terminals: IP20; IP20; Installation location: ≥ IP54; Enclosure: IP20
Short-Circuit Protection Rating
10A gL/gG, NEOZED (N/O), Output fuse, External, Output data; 6A gL/gG, NEOZED (N/C), Output fuse, External, Output data
Fitted With
Approval for TÜV; Start input; Selectable cross-circuit detection; Detachable clamps; Feedback circuit; Approval according to UL
Switching Voltage
250 V
Heat Dissipation Capacity Pdiss
0 W
Uninterrupted Current
6 A N/O, Limiting continuous current; 6 A N/C, Limiting continuous current
Environmental Conditions
Clearance in air and creepage distances according to EN 60947-1, UL 508, CSA C22.2, No. 14-95; Condensation: Non-condensing
Control Voltage 1 - Min
24 V
Suitable For
Monitoring of position switches; Module used to safely interrupt electrical circuits; Safety relay for monitoring emergency stop and protective door switch; Monitoring of optoelectronic protection equipment; Monitoring of emergency-stop circuits; Safety position switch with mechanical securing action LS-S...MT-ZBZ
Pollution Degree
2
Rated Control Supply Voltage (Us) At Ac, 60 Hz - Max
26.4 V
Switching Capacity
3 A at 3600 O/h, DC-13 at 24 V, Outputs; 5 A at 3600 O/h, AC-15 at 230 V, Outputs; 0.4 W; In accordance with IEC 60947-5-1, Outputs
Electric Connection Type
Screw connection
Control Voltage 2 - Min
24 V
Permissible Total Cable Resistance
500 Ω (input and starting circuits for UN)
Climatic Proofing
Dry heat to IEC 60068-2-2; Damp heat, constant, to IEC 60068-2-3; Cold to EN 60068-2-1
Operating Voltage At Dc - Max
24 V
Vibration Resistance
10 - 150 Hz, Amplitude: 0.15 mm, Acceleration: 2 g, (IEC/EN 60068-2-6)
Short-Circuit Protection
Fuse 10 A gL/gG NEOZED, For output circuits, External
Overvoltage Category
III
Recovery Time
330 ms (restart)
Static Heat Dissipation, Non-Current-Dependent Pvs
7.8 W
Rated Control Supply Voltage (Us) At Ac, 50 Hz - Min
0 V
Heat Dissipation Per Pole, Current-Dependent Pvid
0 W
Model
Basic device
Operating Voltage At Ac, 60 Hz - Max
0 V
Operating Voltage At Ac, 50 Hz - Min
0 V
Interference Immunity
According to EN-61000-6-2; According to EN 662061_x
Release-Delay - Min
0.1 s
Inrush Current
0.025 - 6 A
Rated Control Supply Voltage (Us) At Ac, 50 Hz - Max
26.4 V
Equipment Heat Dissipation, Current-Dependent Pvid
0 W
Power Supply Circuit
1.8 W (DC operated)
Ambient Storage Temperature - Min
-40 °C
Operating Temperature - Max
45 °C
Rated Insulation Voltage (Ui)
250 V
Input
∞ ms, Simultaneity for inputs 1/2
Number Of Outputs (Signaling Function, Delayed) With Contact
0
Lifespan, Mechanical
10,000,000 Operations
Number Of Outputs (Signaling Function, Undelayed, Semiconductors)
0
Nominal Current
3.5 A
Supply Voltage At Ac, 60 Hz - Min
0 V
Control Voltage 1 Type
DC
Power Loss
Normally 7.8 W
Off-Delay
0.1 - 30 s (± 40 %, K3, K4 adjustable)
Ambient Storage Temperature - Max
70 °C
Switching Frequency
Max. 0.5 Hz, Input data
Reset Time
Normally 100 ms (delayed contacts); 20 ms (non-delayed contacts)
Ambient Operating Temperature - Min
-20 °C
Supply Voltage At Ac, 50 Hz - Min
0 V
Supply Voltage At Ac, 60 Hz - Max
0 V
Resistance
500 Ω (impedance)
Rated Control Supply Voltage (Us) At Dc - Min
0 V
Rated Operational Voltage
24 V DC (power supply); Approx. 24 V DC at input, starting and feedback circuit; 230 V AC
Pick-Up Time
150 ms typ. (at Uₑ in automatic mode); 150 ms typ. (controlled start, K1, K2 - for UN manual operation); 150 ms typ. (controlled start, K1, K2 - for UN automatic mode); 150 ms typ. (at Uₑ in manual mode)
Product Name
Eaton ESR5 Safety relay
Rated Switch Current
5A
SIL (IEC 61508)
3
Number Of Outputs (Safety Related, Undelayed) With Contact
2
Control Voltage 1 - Max
24 V
Safety Parameter (En Iso 13849-1)
400,000 switching cycles, B10d; Cat. 4, Category; PL e, Performance level
Number Of Outputs (Safety Related, Undelayed, Semiconductors)
0
Protection
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated Impulse Withstand Voltage (Uimp)
4000 V AC
Operating Voltage At Dc - Min
24 V
Supply Voltage At Ac, 50 Hz - Max
0 V
Current Consumption
75 mA, DC
Safety Performance Level (En Iso 13849-1)
Level e
Terminal Capacity
2 x (0.2 - 1) mm², solid; 24 - 12 AWG, solid or stranded; 1 x (0.2 - 2.5) mm², solid; 2 x (0.25 - 1) mm², flexible with ferrule; 1 x (0.25 - 2.5) mm², flexible with ferrule
Rated Control Supply Voltage (Us) At Dc - Max
24 V
Rated Operational Current For Specified Heat Dissipation (In)
12A
Tightening Torque
0.6 Nm, Screw terminals
Operating Voltage At Ac, 60 Hz - Min
0 V
Operating Voltage At Ac, 50 Hz - Max
0 V
Breaking Power
144 W max., resistive load (τ = 0 ms), at 24 V DC; 42 W max., inductive load (τ = 40 ms), at 24 V DC; 88 W max., resistive load (τ = 0 ms), at 220 V DC; 1500 VA, max., resistive load (τ = 0 ms), at 250 V AC; 23 W max., inductive load (τ = 40 ms), at 220 V DC; 288 W max., resistive load (τ = 0 ms), at 48 V DC; 33 W max., inductive load (τ = 40 ms), at 48 V DC; 25 W max., inductive load (τ = 40 ms), at 110 V DC; 90 W max., resistive load (τ = 0 ms), at 110 V DC
Mounting Method
Top-hat rail fixing (according to IEC/EN 60715, 35 mm); Rail mounting possible
Type
Emergency stop category 1; emergency switching off; Feedback circuit; Light curtain; Protective door
Relative Humidity
< 75 %
Functions
1-channel; 2-channel; Time function
Air Pressure
795 - 1080 hPa (operation)
Voltage Type
DC
Safety Parameter (Iec 62061)
SIL 3 only for high demand requirements, Safety integrity level; Cat. 4, Category; 18 x 10-10, PFHd, Probability of failure per hour; SIL 3, Safety integrity level; SILCL 3, Safety integrity level claim limit; SIL 3, Safety integrity level, In accordance with IEC 61508
Supply Voltage At Dc - Max
24 V
Material
Contacts: silver tin oxide, gold plated (AgSnO2, 0.2 µm Au); Enclosure: Polyamide (PA), not reinforced
Number Of Outputs (Safety Related, Delayed, Semiconductors)
0
Release-Delay - Max
30 s
Led Indicator
Status indication of SmartWire-DT network: Green LED
Altitude
Max. 2000 m
Rated Control Supply Voltage (Us) At Ac, 60 Hz - Min
20.4 V
Ambient Operating Temperature - Max
45 °C
Supply Voltage At Dc - Min
24 V
Number Of Outputs (Signaling Function, Delayed, Semiconductors)
0
Operating Temperature - Min
-20 °C
Number Of Outputs (Safety Related, Delayed) With Contact
2

Description

Safety Monitoring Relay, Delay Time 0.1 to 30 sec, Delay Type Adjustable, Electrical Connection Screw Terminal, Terminal Block Removable, IP Rating IP20; IP54, Input Voltage 24V DC, Mounting Style DIN Rail, Number of Inputs 2, Number of Pins 16, Output Switch Configuration (2) NC, (2) NO, Response Time 150 msec, Standards CE Certified, CSA Certified, IEC Rated, UL Listed, Contact Rating (AC) 5 A @ 240V, Contact Rating (DC) 5 A @ 24V
