Shop EATON

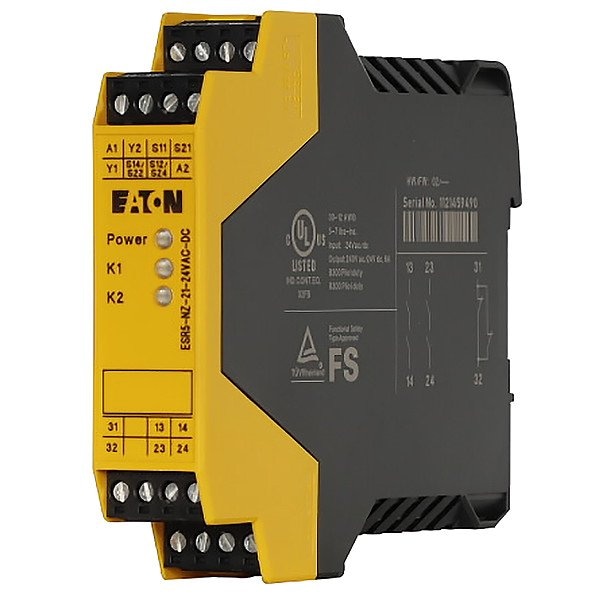

SafetyMonitoringRelay, In24VAC/DC, 16Pin

  • Mfr # ESR5-NZ-21-24VAC-DC

  • Zoro # G805748036

product price:
$
433.99
/ea
Free Shipping & Returns

Key Features

Input or Control Voltage
24 V AC/DC
AC Contact Rating - Relay
4.0 A@240 VAC
DC Contact Rating - Relay
4.0 A@24 VDC
Mounting - Relay
DIN Rail
Output Switch Configuration - Relay
(2) NO and (1) NC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ESR5-NZ-21-24VAC-DC
Zoro #
G805748036
UPC #
-
Country of Origin
Germany
Item
Safety Monitoring Relay
Input or Control Voltage
24 V AC/DC
AC Contact Rating - Relay
4.0 A@240 VAC
DC Contact Rating - Relay
4.0 A@24 VDC
Mounting - Relay
DIN Rail
Output Switch Configuration - Relay
(2) NO and (1) NC
Input Power Consumption (Burden)
50 mW
Number of Inputs - Relay
2
Use With - Relay
Coded Magnetic Safety Interlock Switch, E Stop, Limit Switch, Rope Pulls, Light Curtain (OSSD) All Easy Series Relays, Two Hand Control
Response Time
50 msec
Environmental Protection
Finger-Safe
Connection Type
M3 screw terminals
Response Time - Relay
50 msec
IP Rating
IP20
Power Consumption
0.05 W
Standards
CE Certified, CSA Certified, IEC Rated, UL Listed
Electrical Connection - Relay
Plug-In Screw Terminals
For Use With
Coded Magnetic Safety Interlock Switch, Emergency Stop, Light Curtain (OSSD) all Easy Series Relays, Limit Switch, Rope Pulls, Two Hand Control
Number of Pins - Relay
16
Input Voltage
24V AC/DC
Item - Relay
Safety Relay
Contact Rating (DC)
4 A @ 24V
Contact Rating (AC)
4 A @ 24V
Number of Pins
16
Number of Inputs
2
Application
Emergency Stop, Gate Enable Device, Light Curtain (OSSD), Rope Pulls, Safety Switches, Two-Hand Control Stations
Electrical Connection
Screw Terminal, Terminal Block Removable
Minimum Operating Temperature
-4 Degrees F
Maximum Operating Temperature
131 Degrees F
Frequency
50/60 Hz
Output Switch Configuration
(1) NC, (2) NO
Mounting Style
DIN Rail
Weight
9.6 oz
Compliances
CE Marked
Certifications
UL Listed
Voltage Type
AC/DC
Static Heat Dissipation, Non-Current-Dependent Pvs
5.16 W
Operating Voltage At Ac, 60 Hz - Min
24 V
Supply Voltage At Ac, 50 Hz - Min
24 V
Recovery Time
< 1000 ms
Control Voltage 2 - Max
24 V
Number Of Outputs (Safety Related, Undelayed) With Contact
2
Heat Dissipation Per Pole, Current-Dependent Pvid
0 W
Supply Voltage At Ac, 60 Hz - Min
24 V
Fitted With
Approval according to UL; Detachable clamps; Feedback circuit; Approval for TÜV
Operating Voltage At Ac, 50 Hz - Max
24 V
Safety Performance Level (En Iso 13849-1)
Level e
Number Of Outputs (Signaling Function, Undelayed, Semiconductors)
0
Tightening Torque
0.6 Nm, Screw terminals
Features
Reinforced insulation; Automatic start; 2 Non-delayed enable current paths; Basic insulation; Monitoring of external contactor/expansion unit; Safe insulation
Switching Frequency
Max. 0.5 Hz, Input data
Rated Insulation Voltage (Ui)
250 V
Nominal Current
60 A
Number Of Outputs (Safety Related, Undelayed, Semiconductors)
0
Climatic Proofing
Dry heat to IEC 60068-2-2; Damp heat, constant, to IEC 60068-2-3
Switching Capacity
5 A at 3600 O/h, AC-15 at 230 V, Outputs; In accordance with IEC 60947-5-1, Outputs; 0.4 W; 5 A at 3600 O/h, DC-13 at 24 V, Outputs
Rated Control Supply Voltage (Us) At Dc - Max
24 V
Resistance
22 Ω (impedance)
Uninterrupted Current
6 A N/O, Limiting continuous current; 6 A N/C, Limiting continuous current
Type
Feedback circuit; Protective door
Breaking Power
110 W max., resistive load (τ = 0 ms), at 110 V DC; 42 W max., inductive load (τ = 40 ms), at 110 V DC; 42 W max., inductive load (τ = 40 ms), at 220 V DC; 144 W max., resistive load (τ = 0 ms), at 24 V DC; 288 W max., resistive load (τ = 0 ms), at 48 V DC; 42 W max., inductive load (τ = 40 ms), at 24 V DC; 1500 VA, max., resistive load (τ = 0 ms), at 250 V AC; 42 W max., inductive load (τ = 40 ms), at 48 V DC; 88 W max., resistive load (τ = 0 ms), at 220 V DC
Operating Temperature - Min
-20 °C
Control Voltage 1 - Max
24 V
Switching Voltage
250 V
Stop Category (IEC 60204)
0
Lifespan, Mechanical
10,000,000 Operations
Relative Humidity
< 75 %
Degree Of Protection
IP20; Terminals: IP20; Installation location: ≥ IP54; Enclosure: IP20
Supply Voltage At Ac, 50 Hz - Max
24 V
Functions
2-channel; Two-hand function
Environmental Conditions
Condensation: Non-condensing; Clearance in air and creepage distances according to EN 50178, UL 508, CSA C22.2, No. 14-95
Control Voltage 1 Type
AC/DC
Rated Switch Current
5A
Product Name
Eaton ESR5 Safety relay
Power Loss
Normally 5.16 W
Reset Time
Normally 20 ms
Vibration Resistance
10 - 150 Hz, Amplitude: 0.15 mm, Acceleration: 2 g, (IEC/EN 60068-2-6)
Heat Dissipation Capacity Pdiss
0 W
Control Voltage 2 Type
AC/DC
Safety Demands Class Type (En 574)
Type III C
Supply Voltage At Dc - Min
24 V
Control Voltage 1 - Min
24 V
Short-Circuit Current
2.3 A, Input data
Operating Voltage At Ac, 50 Hz - Min
24 V
Number Of Outputs (Signaling Function, Undelayed) With Contact
1
Pollution Degree
2
Inrush Current
0.025 - 6 A
Led Indicator
Status indication of SmartWire-DT network: Green LED
Rated Operational Voltage
24 V AC/DC (power supply); 230 V AC; Approx. 24 V DC at input, starting and feedback circuit
Short-Circuit Protection
Short-circuit proof, 24 V, Fuse for control circuit supply, Control circuit; Fuse 6 A gL/gG, For output circuits, External
Rated Impulse Withstand Voltage (Uimp)
6000 V AC
Operating Voltage At Dc - Min
24 V
Control Voltage 2 - Min
24 V
Interference Immunity
According to EN 61000-6-2
Operating Voltage At Ac, 60 Hz - Max
24 V
Air Pressure
795 - 1080 hPa (operation)
Current Consumption
60 mA, DC; 125 mA, AC
Input
< 500 ms, Simultaneity for inputs 1/2
SIL (IEC 61508)
3
Number Of Outputs (Safety Related, Delayed, Semiconductors)
0
Rated Control Supply Voltage (Us) At Ac, 50 Hz - Min
0 V
Pick-Up Time
50 ms typ. (at Uₑ in automatic mode); 50 ms typ. (K1, K2 - for UN automatic mode); 50 ms typ. (K1, K2 - for UN manual operation); 50 ms typ. (at Uₑ in manual mode)
Ambient Storage Temperature - Max
70 °C
Mounting Method
Rail mounting possible; Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Material
Contacts: silver tin oxide, gold plated (AgSnO2, 0.2 µm Au); Enclosure: Polyamide (PA), not reinforced
Protection
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Overvoltage Category
III
Ambient Operating Temperature - Max
55 °C
Ambient Storage Temperature - Min
-40 °C
Operating Temperature - Max
55 °C
Terminal Capacity
1 x (0.2 - 2.5) mm², solid; 2 x (0.2 - 1) mm², solid; 2 x (0.25 - 1) mm², flexible with ferrule; 24 - 12 AWG, solid or stranded; 1 x (0.25 - 2.5) mm², flexible with ferrule
Short-Circuit Protection Rating
6A gL/gG, NEOZED (N/C), Output fuse, External, Output data; 10A gL/gG, NEOZED (N/O), Output fuse, External, Output data
Input Switch Function Type
Normally closed contact and normally open contact
Electric Connection Type
Screw connection
Number Of Outputs (Safety Related, Delayed) With Contact
0
Rated Control Supply Voltage (Us) At Ac, 60 Hz - Max
24 V
Altitude
Max. 2000 m
Permissible Total Cable Resistance
50 Ω (input and starting circuits for UN)
Number Of Outputs (Signaling Function, Delayed) With Contact
0
Equipment Heat Dissipation, Current-Dependent Pvid
0 W
Power Supply Circuit
3 W (AC operated 50/60 Hz); 1.5 W (DC operated)
Rated Control Supply Voltage (Us) At Dc - Min
0 V
Number Of Outputs (Signaling Function, Delayed, Semiconductors)
0
Safety Parameter (Iec 62061)
SILCL 3, Safety integrity level claim limit; EN 574 Type III C; SIL 3, Safety integrity level, In accordance with IEC 61508; Cat. 4, Category; 12.1 x 10-10, PFHd, Probability of failure per hour; SIL 3, Safety integrity level
Supply Voltage At Ac, 60 Hz - Max
24 V
Safety Parameter (En Iso 13849-1)
PL e, Performance level; 300,000 switching cycles, B10d; Cat. 4, Category
Rated Control Supply Voltage (Us) At Ac, 50 Hz - Max
24 V
Ambient Operating Temperature - Min
-20 °C
Operating Voltage At Dc - Max
24 V
Rated Operational Current For Specified Heat Dissipation (In)
12A
Rated Control Supply Voltage (Us) At Ac, 60 Hz - Min
20.4 V
Suitable For
Safety functions; Module used to safely interrupt electrical circuits; Safety relay for monitoring two-hand control per EN 574 Type IIIC and protective door switches
Supply Voltage At Dc - Max
24 V

Description

Safety Monitoring Relay, Electrical Connection Screw Terminal, Terminal Block Removable, IP Rating IP20, Input Voltage 24V AC/DC, Mounting Style DIN Rail, Number of Inputs 2, Number of Pins 16, Output Switch Configuration (1) NC, (2) NO, Response Time 50 msec, Standards CE Certified, CSA Certified, IEC Rated, UL Listed, Contact Rating (AC) 4 A @ 24V, Contact Rating (DC) 4 A @ 24V
