  11. Soft Start, 600VAC, NEMA 1/IP20, 99A

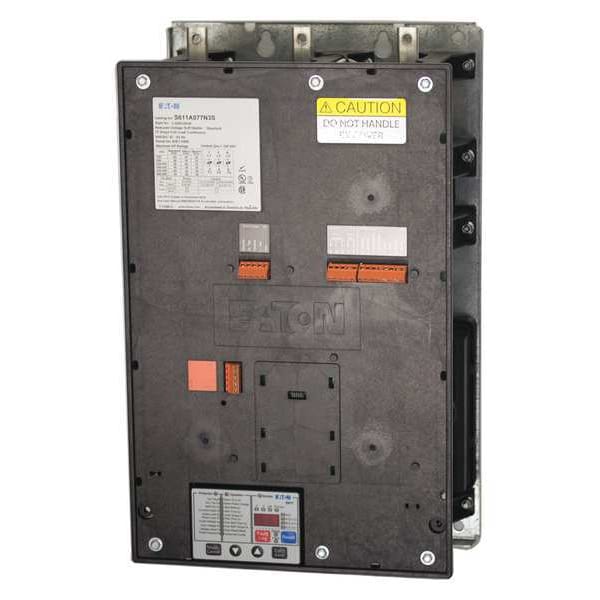

Eaton Soft Start, 600VAC, NEMA 1/IP20, 99A S611B099N3S - main

Soft Start, 600VAC, NEMA 1/IP20, 99A

  • Mfr # S611B099N3S

  • Zoro # G9511984

product price: $7,139.99
/ea
Free Shipping & Returns

Key Features

Start Type
Exclusive Patented Intelligent Technology, Reduced Voltage Starting, Available with Kick Start, Torque Control or Current Limit
Display
Digital
HP @ 3 Phase - 208V
30 hp
Inputs/Outputs
(3) 6A Relay Outputs
Stop Time
1 to 180 sec
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S611B099N3S
Zoro #
G9511984
UPC #
786685480329
Country of Origin
Dominican Republic

Dimensions

Height
19.47 in
Depth
7.43 in
Width
11.58 in
Overall Depth
8.57 in
Overall Height
21.01 in
Overall Width
11.58 in

Details

Start Type
Exclusive Patented Intelligent Technology, Reduced Voltage Starting, Available with Kick Start, Torque Control or Current Limit
Display
Digital
HP @ 3 Phase - 208V
30 hp
Inputs/Outputs
(3) 6A Relay Outputs
Stop Time
1 to 180 sec
Frequency
50/60 Hz
Starting Torque
0% to 83%
Output Current
99 A
Output Voltage
600V AC
Standards
CSA 3211-06, IEC 60947-4-2, UL Listed
Application
Constant and Variable Torque
HP @ 3 Phase - 575V
100 hp
Ramp Time
0.5 to 180 sec.
With Bypass / No Bypass
With Bypass
Communication Port
Modbus Built-In, Ethernet IP, Profibus and Devicenet Available, Two Different Communication Ports Available
HP @ 3 Phase - 240V
30 hp
HP @ 3 Phase - 480V
75 hp
Includes
IT Technology, Internal Bypass Contactors
Protects
Advanced Motor Protection, Jam, Stall, Phase Loss, Phase Imbalance, Ability to Alarm Without Tripping for Critical Situations, Ability for Advance Communications for Critical Load Monitoring is Required
Item
Soft Start
Phase
Three
Enclosure Rating
NEMA 1
Input Voltage
600V AC
Control Voltage
108 to 132V AC
IP Rating
20
HP @ 3 Phase - 460V
75 hp
HP @ 3 Phase - 230V
30 hp
Output Power
100 hp @ 3 Phase, 575V AC, 30 hp @ 3 Phase, 200V AC, 30 hp @ 3 Phase, 240V AC, 75 hp @ 3 Phase, 480V AC
Function Type
Start or Stop
Type
Digital Keypad Control

Description

Soft Start, Input Voltage 600V AC, Output Current 99 A, Output Voltage 600V AC, 100 hp @ 3 Phase, 575V AC, 30 hp @ 3 Phase, 200V AC, 30 hp @ 3 Phase, 240V AC, 75 hp @ 3 Phase, 480V AC, Control Voltage 108 to 132V AC, NEMA 1
