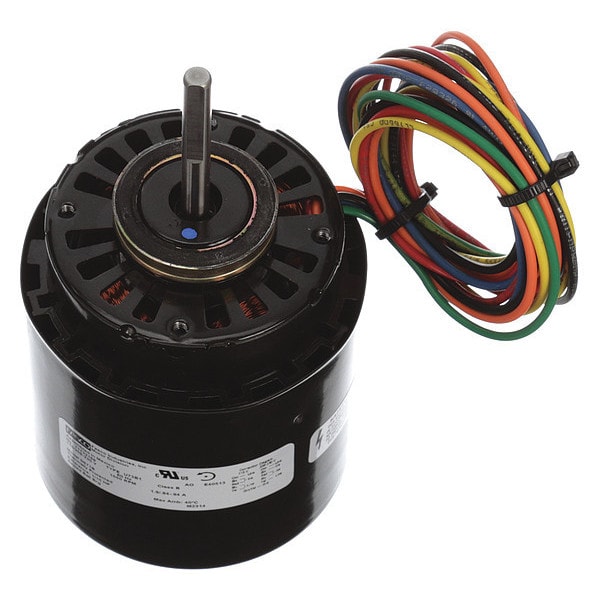

HVAC Motor, OAO, 1/15 HP, 1550 rpm, Face
Mfr # D671B
Zoro # G7473322
product price:Â $139.99
/ea
Free Shipping & Returns
Key Features
Voltage
115/208-230V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/15
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
D671B
Zoro #
G7473322
UPC #
818508021164
Country of Origin
Mexico
Dimensions
Shaft Length
2 1/2 in
Length Less Shaft
4 15/16 in
Shaft Dia.
5/16 in
Body Dia.
3 5/16 in
Overall Length
7 1/2 in
Lead Length
35 in
Bolt Circle Dia.
2 7/8 in
Stud Size
#8-32
Shaft Diameter
5/16 in
Mounting Stud Thread Size
#8-32
Frame Size
3.3
Body Diameter
3.3 in
Bolt Circle Diameter
2 7/8 in
Description
Refrigeration Motor, Single Phase, Motor Design Shaded Pole, 1/15 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 1.9/0.84-0.94 A Full Load Amps, 3.3 Frame, Output Watts 50 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring
