Shop SCHNEIDER ELECTRIC

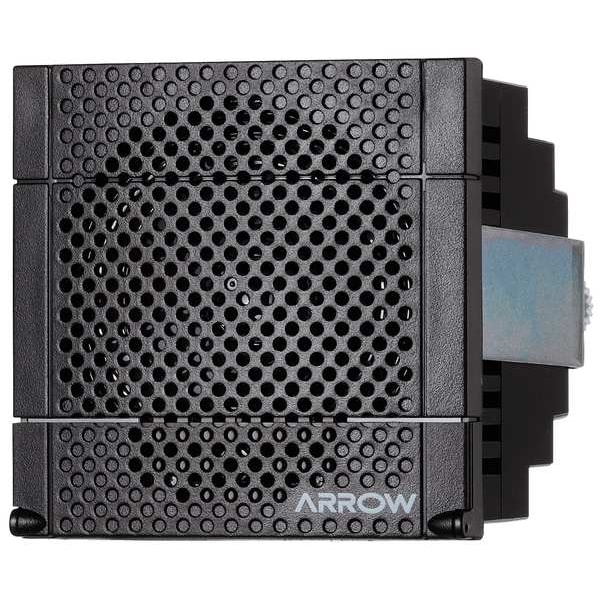

Electronic Alarm, Alarm, Continuous, 12 to 24V DC, 0 to 105dB, ABS Plastic, Black, Surface Mount

  • Mfr # XVS72BMBP

  • Zoro # G1906405

product price:  $187.99
/ea
Free Shipping & Returns

Key Features

Housing Material
ABS Plastic
Mounting
Surface
Amps
0.280 AC
Audible Alarm Type
Alarm
Standards
EN/IEC 61000-6-2, EN/IEC 61000-6-3, UL 464, UR
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
XVS72BMBP
Zoro #
G1906405
UPC #
785901811138
Country of Origin
Indonesia

Dimensions

Height
4 in
Depth
2.8281 in
Width
3.5 in
Overall Depth
69 5/16 mm
Overall Length
72 mm
Overall Width
72 mm

Details

Item
Electronic Alarm
Housing Material
ABS Plastic
Mounting
Surface
Amps
0.280 AC
Color
Black
Audible Alarm Type
Alarm
Voltage
12 to 24V DC
Standards
EN/IEC 61000-6-2, EN/IEC 61000-6-3, UL 464, UR
Indoor/Outdoor
Indoor
Decibels
0 to 105dB
Sound Pattern
Continuous
Hazardous Class
II
Vibrating
No
Operating Temp.
14 Degrees to 122 Degrees F
Watts
6.7 W
Visual Indicator Type
No Visual Indicator
Includes
(4) Inputs, Rotary Dials for Volume Control and Selection from 16 T
Power Source
Wire
Features
This Black Electronic Alarm is Part of the Range of Multi Sound Sirens and Alarms Harmony XVS
Material
ABS, Polycarbonate (Terminal Cover)
Wattage
6.7 W
Rating
IP 54
Product Type
Alarm
Mounting Style
Surface Mount
Connection Type
Wire Leads
Sound Continuity
Continuous
Vibration
No Vibration
Volume Selection
Selectable Volume
Includes Mounting Hardware
No Mounting Hardware
For Location
Indoor
Alarm Volume @ 1 m - Minimum
3 dB
IP Rating
IP54
Control Protocol
Direct Wire
Operating Temperature - Minimum
-10 Degrees C
Sound Style
Tone
Number of Sound Patterns
16
Operating Current
0.117 A @ 12V, 0.125 A @ 24V, 0.158 A @ 12V, 0.200 A @ 24V
Alarm Volume @ 1 m - Maximum
90 dB
Operating Temperature - Maximum
50 Degrees C
Operating Voltage
12 to 24V DC

Description

SCHNEIDER ELECTRIC XVS72BMBP is a surface-mount electronic alarm for indoor audible signaling. It is rated for 12 to 24V DC and provides a continuous tone with selectable volume, with sound output listed at 0 to 105 dB. This black alarm is part of the Harmony XVS range and is intended for direct-wired indoor audible signaling applications without a visual indicator.

Key Features:

  • Audible alarm type: Alarm with continuous sound pattern and tone-style output.
  • Sound options: 16 sound patterns with rotary dials for volume control and sound selection.
  • Volume range: 0 to 105 dB; maximum alarm volume at 1 m: 90 dB.
  • Electrical rating: 12 to 24V DC operating voltage, 6.7 W, with operating current of 0.117 A @ 12V, 0.125 A @ 24V, 0.158 A @ 12V, and 0.200 A @ 24V.
  • Construction: ABS housing with polycarbonate terminal cover; black finish.
  • Mounting and connection: Surface mount with wire leads and direct-wire control protocol.
  • Ingress rating: IP54.
  • Operating temperature: -10°C to 50°C (14°F to 122°F).
  • Visual indicator: None; vibration: None.
  • Dimensions: 4 in. H x 3.5 in. W x 2.8281 in. D.
  • Standards: EN/IEC 61000-6-2, EN/IEC 61000-6-3, UL 464, UR.
