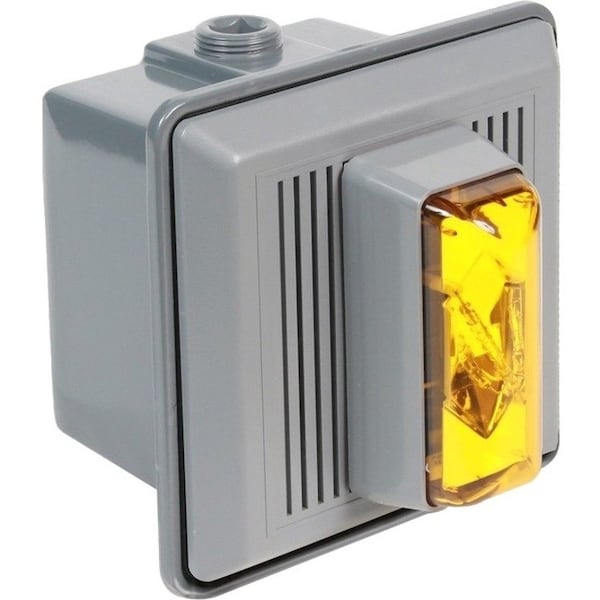

Horn Strobe, Horn, Continuous, 24 V AC, 24V DC, 90 dB, Thermoplastic, Amber Lens, Gray Housing

  • Mfr # 869STRA-AQ
  • Zoro # G4858655
product price:
$
340.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Thermoplastic
Mounting
Surface
Amps
412 mA @ 24V DC, 462 mA @ 24V AC
Audible Alarm Type
Horn
Standards
UL Listed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
869STRA-AQ
Zoro #
G4858655
UPC #
782640239629
Country of Origin
Mexico

Dimensions

Height
5.5 in
Depth
0.625 in
Width
5.5 in
Overall Width
5 1/2 in
Overall Depth
5/8 in
Overall Length
5 1/2 in
Wire Rope Length
5 1/2 in
Length
5 1/2 in

Details

Item
Horn Strobe
Housing Material
Thermoplastic
Mounting
Surface
Amps
412 mA @ 24V DC, 462 mA @ 24V AC
Color
Amber Lens, Gray Housing
Audible Alarm Type
Horn
Voltage
24V AC, 24V DC
Standards
UL Listed
Indoor/Outdoor
Indoor
Decibels
90 dB
Sound Pattern
Continuous
Housing Color
Gray
Vibrating
No
Lens Color
Amber
Flashes per Minute
60
Visual Indicator Type
Strobe
Current Drawn
462 mA @ 24V AC, 412 mA @ 24V DC
Light Output
90 CP
Operating Temp.
-31 Degrees to 150 Degrees F Outdoor, 32 Degrees to 120 Degrees F Indoor
Power Source
Wire
Product Type
Horn and Strobe
Alarm Volume @ 1 m - Maximum
100 dB
Light Operating Mode
Strobe
Control Protocol
Direct Wire
Number of Sound Patterns
1
Operating Current
0.462 A @ 24V AC, 0.412 A @ 24V DC
Alarm Volume @ 10 ft - Maximum
90 dB
Operating Temperature - Minimum
32 Degrees F
Brightness Selection
Fixed Brightness
Light Source
Xenon
Light Intensity
90 CP
Connection Type
Wire Leads
Vibration
No Vibration
Sound Continuity
Continuous
Operating Temperature - Maximum
120 Degrees F
Mounting Style
Flush Mount
Sound Style
Horn
For Location
Indoor
Operating Voltage
24 V AC, 24V DC
Power Source - TS Only
Wire
Power Source - old
Wire

Description

EDWARDS SIGNALING 869STRA-AQ is an indoor horn strobe that combines an audible horn and amber strobe in one direct-wire signaling device. It is rated for 24V AC or 24V DC and configured for flush mounting, with a gray thermoplastic housing and amber lens for audible horn and visual strobe indication.

Key Features:

  • Audible alarm type: horn with continuous sound pattern
  • Sound output: 90 dB at 10 ft maximum; 100 dB at 1 m maximum
  • Visual indicator: xenon strobe with amber lens
  • Light output: 90 CP
  • Flash rate: 60 flashes per minute
  • Voltage: 24V AC, 24V DC
  • Current draw: 462 mA at 24V AC; 412 mA at 24V DC
  • Connection/control: wire leads with direct-wire control protocol
  • Mounting style: flush mount
  • Housing material: thermoplastic with gray housing
  • Dimensions: 5.5 in H x 5.5 in W x 0.625 in D
  • Operating temperature: 32°F to 120°F for indoor use
  • Standards: UL Listed
  • Vibration feature: not included
