Shop EDWARDS SIGNALING

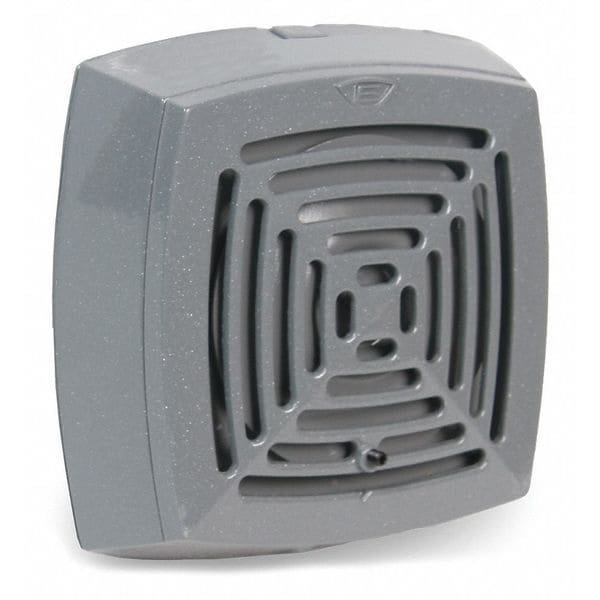

Vibrating Horn, Horn, Continuous, 24V DC, 101 dB, Heavy Duty Die Cast, Gray, Surface Mount

  • Mfr # 875-G1

  • Zoro # G4660144

product price:  $219.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Heavy Duty Die Cast
Mounting
Surface
Amps
0.16
Color
Gray
Audible Alarm Type
Horn
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
875-G1
Zoro #
G4660144
UPC #
782640262702
Country of Origin
Mexico

Dimensions

Width
4.625 in
Height
4.625 in
Depth
1.875 in
Overall Depth
1 7/8 in
Overall Width
4 5/8 in
Overall Length
4 5/8 in

Details

Item
Vibrating Horn
Housing Material
Heavy Duty Die Cast
Mounting
Surface
Amps
0.16
Color
Gray
Audible Alarm Type
Horn
Voltage
24V DC
Standards
UL Listed
Indoor/Outdoor
Indoor
Decibels
101 dB
Sound Pattern
Continuous
Vibrating
Yes
Visual Indicator Type
No Visual Indicator
Includes
Adaptaplate
Power Source
Wire
Features
Completely Assembled, Corrosion Resistant Finish
Product Type
Horn
Rating
NEMA 4X
Material
Heavy Duty Die Cast
Volume Selection
Selectable Volume
Alarm Volume @ 1 m - Maximum
111 dB
Operating Current
0.160 A
Sound Style
Horn
Alarm Volume @ 10 ft - Maximum
101 dB
IP Rating
NEMA 4X
NEMA Rating
NEMA 4X
Connection Type
Plug-In Connector
For Location
Indoor
Vibration
Vibrating
Mounting Style
Surface Mount
Sound Continuity
Continuous
Number of Sound Patterns
1
Sound Principle
Vibrating
Operating Voltage
24V DC

Description

The EDWARDS SIGNALING 875-G1 is a vibrating horn for continuous audible warning signal applications. It operates on 24V DC and has a sound output rating of 101 dB at 10 ft. for indoor signaling applications. This surface-mount unit features a die-cast housing, a gray finish listed as corrosion resistant, and no visual indicator.

Key Features:

  • Audible alarm type: Horn with vibrating sound principle
  • Sound pattern: Continuous
  • Number of sound patterns: 1
  • Sound output: 101 dB at 10 ft.; 111 dB maximum at 1 m
  • Voltage: 24V DC
  • Operating current: 0.160 A
  • Connection type: Plug-in connector
  • Mounting style: Surface mount
  • Housing/material: Die-cast housing/material
  • Rating: NEMA 4X
  • Standards: UL Listed
  • Location: Indoor
  • Dimensions: 4.625 in. H x 4.625 in. W x 1.875 in. D
  • Includes: Adaptaplate
  • Additional features: Completely assembled; finish listed as corrosion resistant; selectable volume
