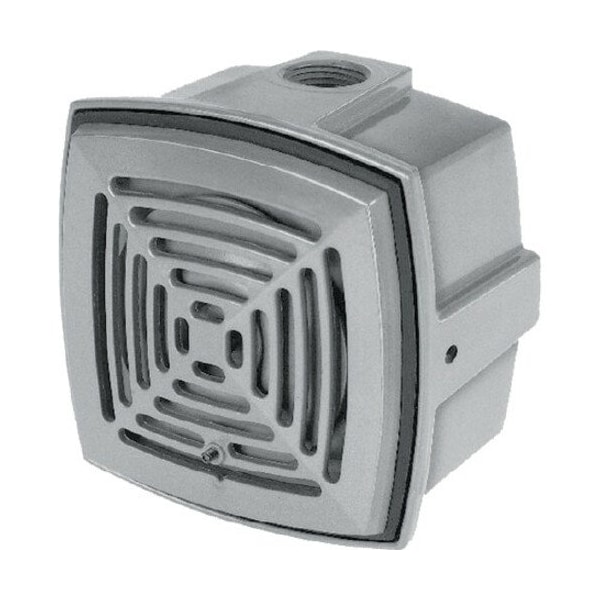

Shop EDWARDS SIGNALING

Weatherproof Vibrating Horn, 24VDC, Indoor/Outdoor, Surface Mount, .16 Amps, Continuous Sound

  • Mfr # 877-G1

  • Zoro # G4669113

product price:
$
262.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Heavy Duty Die Cast
Mounting
Surface
Amps
0.16
Color
Gray
Audible Alarm Type
Horn
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
877-G1
Zoro #
G4669113
UPC #
782640263105
Country of Origin
Mexico

Dimensions

Depth
2.125 in
Height
4.875 in
Width
4.875 in
Overall Width
4 7/8 in
Overall Depth
2 1/8 in
Overall Length
4 7/8 in
Wire Rope Length
4 7/8 in
Length
4 7/8 in

Details

Item
Vibrating Horn
Housing Material
Heavy Duty Die Cast
Mounting
Surface
Amps
0.16
Color
Gray
Audible Alarm Type
Horn
Voltage
24V DC
Standards
UL Listed
Indoor/Outdoor
Indoor, Outdoor
Decibels
78 to 101dB
Sound Pattern
Continuous
Vibrating
Yes
Visual Indicator Type
No Visual Indicator
Alarm Type
Audible
Input Voltage
24 V DC
Features
Convenient Plug-In Assembly, Corrosion Resistant Finish
Rating
NEMA 4X
Material
Heavy Duty Die Cast
Product Type
Horn
NEMA Rating
NEMA 4X
Sound Style
Horn
Vibration
Vibrating
Sound Continuity
Continuous
Mounting Style
Surface Mount
Alarm Volume @ 10 ft - Maximum
101 dB
Operating Current
0.160 A
Number of Sound Patterns
1
Alarm Volume @ 1 m - Maximum
111 dB
For Location
Indoor, Outdoor
IP Rating
NEMA 4X
Volume Selection
Selectable Volume
Sound Principle
Vibrating
Operating Voltage
24V DC

Description

EDWARDS SIGNALING 877-G1 is a NEMA 4X-rated vibrating horn intended for audible warning in indoor and outdoor locations. This 24V DC surface-mount unit provides continuous horn sound with selectable volume and a sound output of up to 111 dB at 1 m and 101 dB at 10 ft. Its die-cast housing has a gray, corrosion-resistant finish for indoor/outdoor audible signaling applications.

Key Features:

  • Alarm Type: Audible vibrating horn with no visual indicator.
  • Sound Output: 78 to 101 dB, with maximum volume ratings of 111 dB at 1 m and 101 dB at 10 ft.
  • Sound Pattern: Continuous sound; 1 sound pattern.
  • Voltage/Current: 24V DC input and operating voltage; 0.16 A operating current.
  • Mounting: Surface mount.
  • Construction: Die-cast housing in gray with corrosion-resistant finish.
  • Location Rating: Indoor/outdoor use.
  • Enclosure Rating: NEMA 4X.
  • Standards: UL Listed.
  • Dimensions: 4.875 in. H x 4.875 in. W x 2.125 in. D.
  • Assembly: Plug-in assembly.
