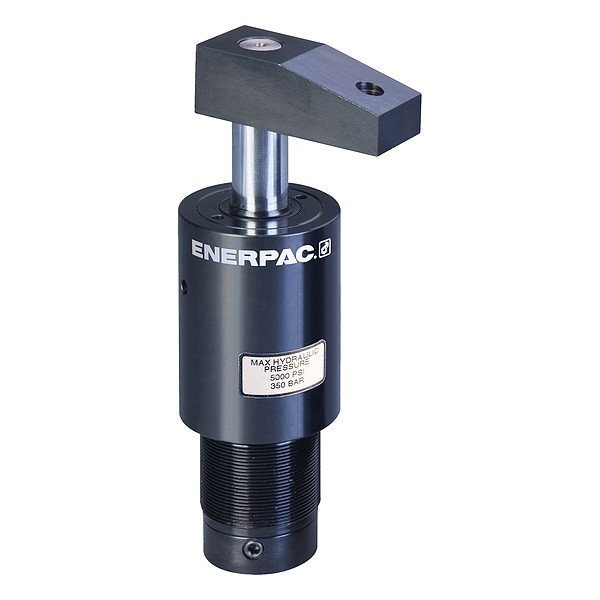

Collet-Lok Swing Cylinder
Mfr # WPTL300V
Zoro # G015488975
product price:Â
$
2,712.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
Max. Pressure
5,000 psi
Extended Height
12.22 in
Retracted Height
10.57 in
Stroke Length
1 21/32 in
Max. Oil Flow
600 cu in/min
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- WPTL300V
- Zoro #
- G015488975
- UPC #
- 0662005372997
- Country of Origin
- Netherlands
Dimensions
- Extended Height
- 12.22 in
- Retracted Height
- 10.57 in
- Stroke Length
- 1 21/32 in
- Outside Dia.
- 3.66 in
- Port Size
- #2 SAE
Details
- Item
- Collet-Lok Swing Cylinder
- Max. Pressure
- 5,000 psi
- Max. Oil Flow
- 600 cu in/min
- Cylinder Type
- Swing
- Body Material
- Steel
- Includes
- Viton Seal
- Single Acting/Double Acting
- Double Acting
- Pressure Range
- 1,400 to 5,000 psi
- Mounting Style
- Threaded Body
- Swing Angle
- 90 Degrees
- Turns
- Left
- Clamping Force
- 8,500 lbf
- Effective Area Clamped
- 2.05 sq in
- Clamping Stroke
- 0.39 in
- Total Stroke
- 1.65 in
Description
Collet-Lok Swing Cylinder, Swing, Body Material Steel, Mounting Style Threaded Body, Single Acting/Double Acting Double Acting, Turns Left, Clamping Force 8,500 lbf, Total Stroke 1.65 in, Effective Area Clamped 2.05 sq in, Clamping Stroke 0.39 in, Max. Pressure 5,000 psi, Swing Angle 90 Degrees , Port Size #2 SAE, Max. Oil Flow 600 cu in/min, Pressure Range 1,400 to 5,000 psi, Extended Height 12.22 in, Outside Dia. 3.66 in, Includes Viton Seal
