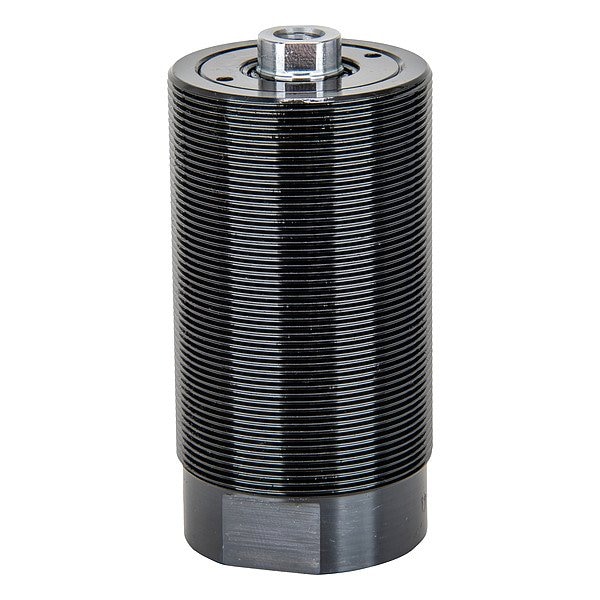

Hydraulic cylinder
Mfr # CDT27501
Zoro # G515488963
product price:Â $508.99
/ea
Free Shipping & Returns
Key Features
Plunger Thread Size
3/8"-16 UNC
Retracted Height
4.21 in
Outside Dia.
2.02 in
Body Material
Steel
Cylinder Type
Threaded Body
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CDT27501
- Zoro #
- G515488963
- UPC #
- 0662005125609
- Country of Origin
- United States
Dimensions
- Plunger Thread Size
- 3/8"-16 UNC
- Retracted Height
- 4.21 in
- Outside Dia.
- 2.02 in
- Extended Height
- 6.17 in
- Stroke Length
- 1 31/32 in
- Min. Hole Depth
- 0.47 in
Details
- Body Material
- Steel
- Item
- Hydraulic Cylinder
- Cylinder Type
- Threaded Body
- Single Acting/Double Acting
- Double Acting
- Mounting Style
- Threaded Body
- Effective Pull Area
- 1.22 sq in
- Oil Capacity Push
- 1.61 cu in
- Seal Material
- Polyurethane/Buna N
- Body Thread
- 2.125"-16 UN
- Oil Capacity Pull
- 2.4 cu in
- Pressure Range
- 5,000 psi max
- Effective Push Area
- 0.82 sq in
- Push Capacity @ 5000 psi
- 6,110 lbf
Description
Hydraulic Cylinder, Threaded Body, Threaded Body, Body Material Steel, Double Acting, Stroke Length 1 31/32 in, Effective Push Area 0.82 sq in, Effective Pull Area 1.22 sq in, Oil Capacity Push 1.61 cu in, Oil Capacity Pull 2.4 cu in, Pressure Range 5,000 psi max, Extended Height 6.17 in, Retracted Height 4.21 in, Body Thread 2.125 In.-16 UN, Plunger Thread Size 3/8 In.-16 UNC, Outside Dia. 2.02 in, Min. Hole Depth 0.47 in, Seal Material Polyurethane/Buna N
