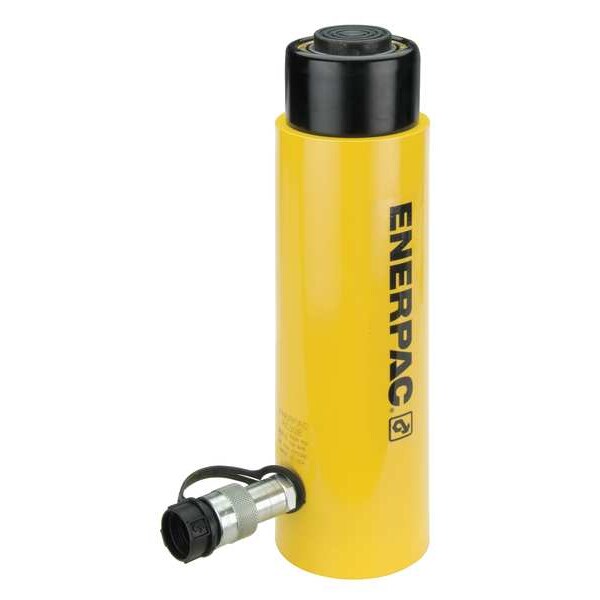

RC308, 32.4 ton Capacity, 8.25 in Stroke, General Purpose Hydraulic Cylinder
Mfr # RC308
Zoro # G1172263
product price: $2,449.99
/ea
Free Shipping & Returns
Key Features
Cylinder Type
General Purpose
Max. Pressure
10,000 psi
Effective Area
6.53 sq. in.
Includes
Coupler, Dust Cap
Collar Thread Size
3-5/16"-12
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
RC308
Zoro #
G1172263
UPC #
662005301447
Country of Origin
China
Dimensions
Collar Thread Size
3-5/16"-12
Stroke Length
8 1/4 in
Retracted Height
15.25 in
Outside Dia.
4 in
Extended Height
23.5 in
Center Hole Dia.
2 1/4 in
Plunger Thread Size
1-1/2"-16
Plunger Dia.
2.25 in
Nominal Stroke Length
8 in
Bolt Circle Dia.
2.31 in
Description
Hydraulic Ram, Single Acting, General Purpose, Steel, Nominal Capacity 30 ton, Max. Push Capacity 30 ton, Stroke Length 8 1/4 in, Nominal Stroke Length 8 in, Effective Push Area 6.49 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 53.56 cu in, Retracted Height 15.25 in, Extended Height 23.5 in, Outside Dia. 4 in, Plunger Dia. 2.25 in, Plunger Thread Size 1-1/2 In.-16, Collar Thread Size 3-5/16 In.-12, Center Hole Dia. 2 1/4 in, Series RC, Includes Coupler, Dust Cap
