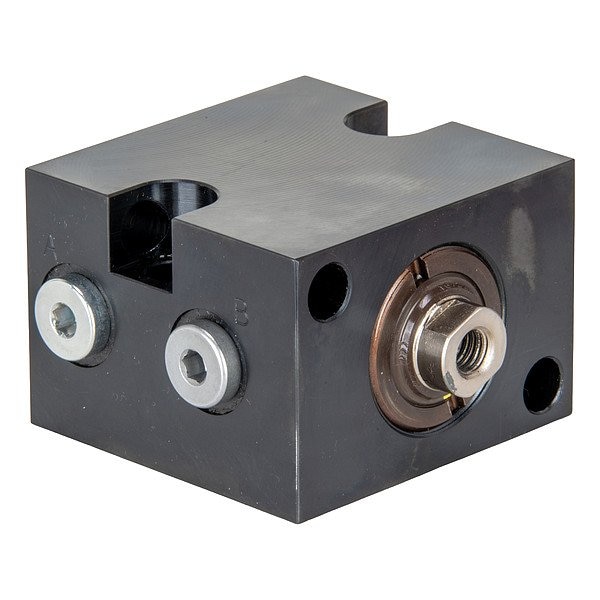

Block hydraulic cylinder
Mfr # CDB18202
Zoro # G115489001
product price:Â
$
438.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
Extended Height
3.54 in
Single Acting/Double Acting
Double Acting
Retracted Height
2.76 in
Cylinder Type
Block Hydraulic Cylinder
Oil Capacity
0.35 cu in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CDB18202
- Zoro #
- G115489001
- UPC #
- 0662005104413
- Country of Origin
- United States
Dimensions
- Extended Height
- 3.54 in
- Retracted Height
- 2.76 in
- Plunger Thread Size
- M8x1.25
- Plunger Dia.
- 0.47 in
- Stroke Length
- 79/100 in
- Center Hole Dia.
- 8 mm
Details
- Single Acting/Double Acting
- Double Acting
- Cylinder Type
- Block Hydraulic Cylinder
- Oil Capacity
- 0.35 cu in
- Max. Pressure
- 5,000 psi
- Body Material
- Steel
- Item
- Block Hydraulic Cylinder
- Effective Area
- 0.45 sq in (Retract); 0.76 sq in (Advance)
- Operating Pressure
- 5,000 psi
- Nominal Capacity
- 3,800 lbf
- Cylinder Orientation
- Horizontal, Vertical
- Capacity @ Operating Pressure
- 3,800 lbf
Description
Block Hydraulic Cylinder, Double Acting, Block Hydraulic Cylinder, Steel, Nominal Capacity 3,800 lbf, Stroke Length 79/100 in, Effective Area 0.45 sq in (Retract); 0.76 sq in (Advance), Max. Pressure 5,000 psi, Oil Capacity 0.35 cu in, Retracted Height 2.76 in, Extended Height 3.54 in, Capacity @ Operating Pressure 3,800 lbf, Operating Pressure 5,000 psi, Plunger Dia. 0.47 in, Plunger Thread Size M8x1.25, Center Hole Dia. 8 mm
