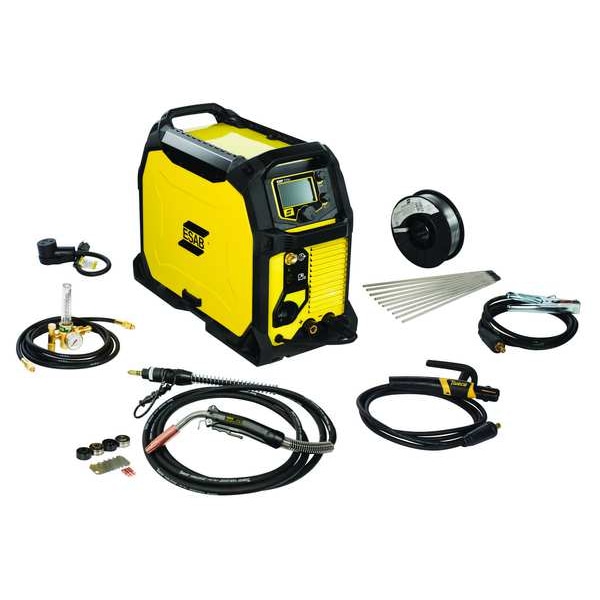

Esab Multiprocess Welder, Rebel EMP 235ic, Phase Single-Phase , 120V AC, 208V AC, 230V AC 0558012702 - main

Multiprocess Welder, Rebel EMP 235ic, Phase Single-Phase , 120V AC, 208V AC, 230V AC

  • Mfr # 0558012702

  • Zoro # G2771933

product price:  $4,359.99
/ea
Free Shipping & Returns

Key Features

Series
Rebel EMP 235ic
Phase
Single
Input Voltage
120/208/230V AC
Function
DC TIG, Flux Core, MIG, Stick
Rated Output
150A@120V DC, 250A@230V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
0558012702
Zoro #
G2771933
UPC #
662067959198
Country of Origin
Multiple

Dimensions

Aluminum - Material Thickness
18 ga to 1/2 in
Overall Height (In.)
26 1/2 in
Overall Width (In.)
11 1/2 in
Overall Depth (In.)
19 1/2 in
Wire Size
Aluminum 0.030 in to 0.047 in, Flux Cored 0.030 in to 0.052 in, Mild Steel 0.023 in to 0.045 in, Stainless Steel 0.030 in to 0.045 in
Overall Width
11.5 in
Maximum Wire Diameter
0.045 in (Mild Steel), 0.045 in (Stainless Steel), 0.047 in (Aluminum), 0.052 in (Flux-Cored)
Power Cord Length
10 ft
Overall Height
26.5 in
For Minimum Material Thickness
24 ga (Steel)
Minimum Wire Diameter
0.024 in (Mild Steel), 0.030 in (Aluminum), 0.030 in (Flux-Cored), 0.030 in (Stainless Steel)
Overall Depth
19.5 in
For Maximum Material Thickness
1/2 in (Steel)
Wire Diameter Flux-Cored - Minimum
0.03 in
Wire Diameter Aluminum - Maximum
0.047 in
Wire Diameter Flux-Cored - Maximum
0.052 in
For Steel Thickness - Minimum
24 ga
For Steel Thickness - Maximum
1/2 in
Wire Diameter Solid - Maximum
0.045 in
Wire Diameter Aluminum - Minimum
0.03 in
Wire Diameter Solid - Minimum
0.024 in

Details

Item
Multiprocess Welder
Series
Rebel EMP 235ic
Phase
Single
Input Voltage
120/208/230V AC
Function
DC TIG, Flux Core, MIG, Stick
Rated Output
150A@120V DC, 250A@230V DC
Includes
0.035 in Wire, Contact Tips, Drive Rolls, Electrode Holder, ESAB Atom Arc 7018 Electrodes, Return Clamp with Leads, Tweco Spray Master 250 MIG Gun, Victor Argon Flowmeter Regulator with 12-1/2 ft Hose
Application
Agricultural Equipment, Automotive, Civil Construction, HVAC, Industrial and General Fabrication, Repair and Maintenance
Hz
50/60
Output Range
5 to 250A DC
OCV
90
Features
MIG Technology, Unmatched Portability
Amps AC
5-250ADC
Standards
CSA E60974-1, IEC 60974-1, UL 60974-1
Duty Cycle
40%
Input (Amps)
5/60
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Amperage Range
5 A to 250 A
For Wire Type
Aluminum, Flux-Cored, Solid
TIG Arc Start Feature
Lift Arc Start
MIG Welding Output @ Duty Cycle
120 A @ 19 V, 40%, 235 A @ 26 V, 40%
Effective Input Current
150 A @ 120V AC (Single-Phase), 250 A @ 230V AC (Single-Phase)
Open Circuit Voltage
90 V DC
Power Cord Included
Yes
Stick Welding Minimum Output Current
5 A
Input Frequency
50/60 Hz
Stick Welding Output @ Duty Cycle
210 A @ 28.4 V, 25%, 90 A @ 23.6 V, 40%
Color
Yellow
TIG Welding Output @ Duty Cycle
130 A @ 15.2 V, 40%, 240 A @ 19.6 V, 40%
Polarity
DC
Weight
53 lb
TIG Welding Maximum Output Current
250 A
MIG Welding Minimum Output Current
5 A
TIG Welding Minimum Output Current
5 A
Max. Input Current
150 A @ 120 V, 250 A @ 230 V
Minimum Wire Feed Speed
60 in/min
Remote Connection Type
8-Pin (ESAB)
For Material Type
Aluminum, Mild Steel, Stainless Steel
Stick Welding Maximum Output Current
250 A
Plug Type
6-50P
Welding Mode
CC/CV
Maximum Wire Feed Speed
700 in/min
MIG Welding Maximum Output Current
250 A
Model
0558012702
Amperage TIG - Maximum
250 A
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Amperage Stick - Maximum
250 A
Amperage Stick - Minimum
5 A
Rated Output @ Duty Cycle (MIG)
120 A @ 19 V, 40%, 235 A @ 26 V, 40%
Amperage MIG - Minimum
5 A
Rated Output @ Duty Cycle (TIG)
130 A @ 15.2 V, 40%, 240 A @ 19.6 V, 40%
Amperage TIG - Minimum
5 A
Amperage MIG - Maximum
250 A
Maximum Input Current
150 A @ 120 V, 250 A @ 230 V
Rated Output @ Duty Cycle (Stick)
210 A @ 28.4 V, 25%, 90 A @ 23.6 V, 40%
Welding Power Source Type
CC/CV

Description

Multiprocess Welder, Series Rebel EMP 235ic, Input Voltage 120/208/230V AC, Phase Single, Welding Mode CC/CV, Polarity DC, Input Frequency 50/60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 250 A, TIG Welding Maximum Output Current 250 A, MIG Welding Maximum Output Current 250 A, For Wire Type Aluminum, Flux-Cored, Solid
