Shop LINCOLN ELECTRIC

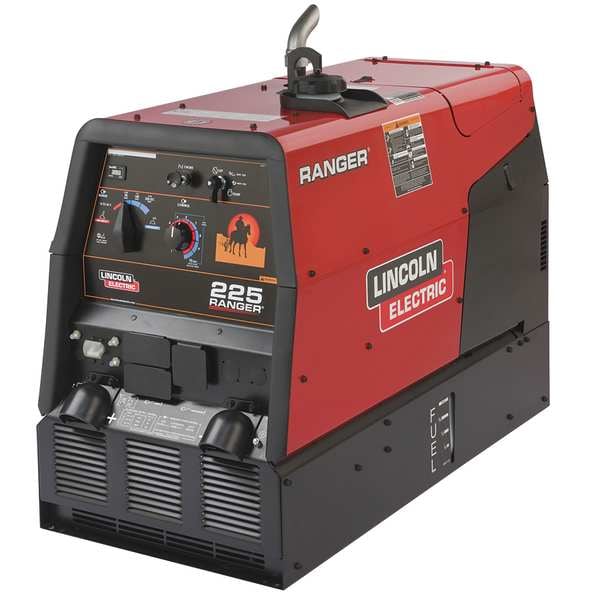

Engine-Driven Welder, Ranger 225 Series, Electric Start, 23 hp, Gas, 10,500 W Peak

  • Mfr # K2857-1

  • Zoro # G1316926

product price:
$
8,691.99
/ea
Additional $270.00 delivery surcharge applies per item.
See details

Key Features

Series
Ranger 225
Start Type
Electric
Rated Output CC/DC
225A DC CC @ 25V, 40%
Amperage Range
50 to 225
Continuous Auxiliary Power
9,000 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
K2857-1
Zoro #
G1316926
UPC #
015082888859
Country of Origin
United States

Dimensions

Height
29 29/32 in
Depth
42 19/64 in
Width
21 1/2 in
Overall Depth
43.3 in
Overall Width
21.5 in
Overall Height
29.91 in

Details

Item
Engine-Driven Welder
Series
Ranger 225
Start Type
Electric
Rated Output CC/DC
225A DC CC @ 25V, 40%
Amperage Range
50 to 225
Continuous Auxiliary Power
9,000 W
Peak Auxiliary Power
10,500 W
Engine Brand
Kohler
HP
23 hp
Fuel Type
Gas
Phase
Single
Standards
CSA Certified, ISO 9001
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Stick Welding Maximum Output Current
225 A
Engine Model
Kohler CH730
MIG Welding Minimum Output Current
50 A
TIG Welding Maximum Output Current
225 A
Generator Outlets
20 A 120V 5-20R (4), 50 A 120/240V 14-50R
Circuit Breaker
Yes
Generator Fuel Type
Gasoline
Open Circuit Voltage
80 V
Polarity
DC
Stick Welding Output @ Duty Cycle
200 A @ 20 V, 100%, 210 A @ 25 V, 100%, 225 A @ 25 V, 40%
Sound Level
76.4 dBA @ 23 ft
Engine Displacement
44 cu in
Oil Capacity
2 qt
Horsepower
23 hp
Color
Red
Fuel Tank Capacity
12 gal
MIG Welding Output @ Duty Cycle
200 A @ 20 V, 100%, 210 A @ 25 V, 100%, 225 A @ 25 V, 40%
Stick Welding Minimum Output Current
50 A
Welding Mode
CC/CV
TIG Welding Minimum Output Current
50 A
Weight
514 lb
MIG Welding Maximum Output Current
225 A
TIG Welding Output @ Duty Cycle
200 A @ 20 V, 100%, 210 A @ 25 V, 100%, 225 A @ 25 V, 40%
Model
K2857-1
Amperage Stick - Minimum
50 A
Rated Output @ Duty Cycle (TIG)
200 A @ 20 V, 100%, 210 A @ 25 V, 100%, 225 A @ 25 V, 40%
Amperage TIG - Minimum
50 A
Amperage Stick - Maximum
225 A
Welding Power Source Type
CC/CV
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Rated Output @ Duty Cycle (MIG)
200 A @ 20 V, 100%, 210 A @ 25 V, 100%, 225 A @ 25 V, 40%
Rated Output @ Duty Cycle (Stick)
200 A @ 20 V, 100%, 210 A @ 25 V, 100%, 225 A @ 25 V, 40%
Amperage MIG - Maximum
225 A
Amperage MIG - Minimum
50 A
Amperage TIG - Maximum
225 A

Description

Engine-Driven Welder, Color Red, Generator Fuel Type Gasoline, MIG Welding Maximum Output Current 225 A, MIG Welding Minimum Output Current 50 A, MIG Welding Output @ Duty Cycle 200 A @ 20 V, 100 Percent, 210 A @ 25 V, 100 Percent, 225 A @ 25 V, 40 Percent, Phase Single, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 225 A, Stick Welding Minimum Output Current 50 A
