Shop ESSEX

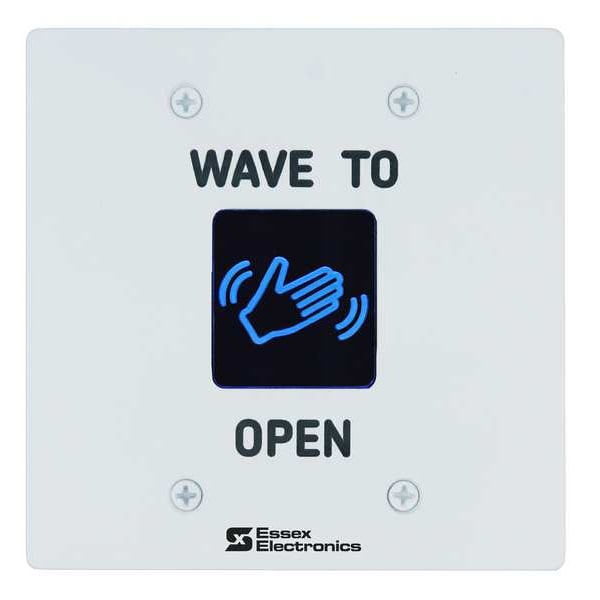

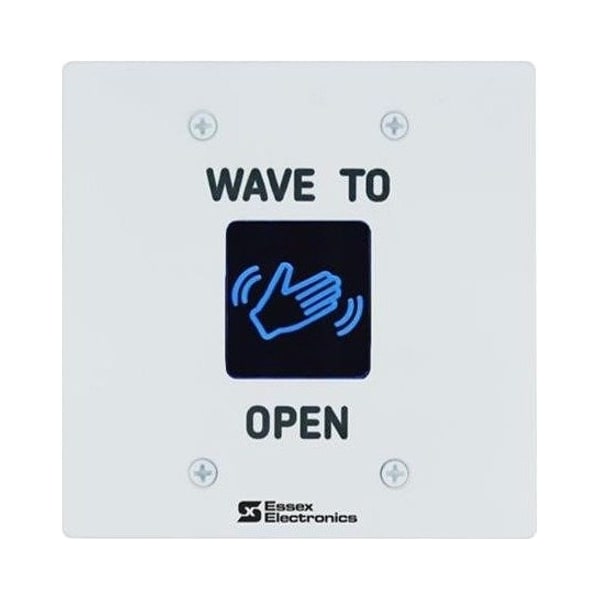

Touchless Switch, Stainless Steel

  • Mfr # HEW - 3W
  • Zoro # G300892678
product price:
$
173.99
/ea
Free Shipping & Returns

Key Features

Type
Single Gang
Switch Action
DPDT
Includes
(2) Wire Mechanical Switches
Material
Stainless Steel
For Use With
Access control, Automatic Door Operators
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HEW - 3W
Zoro #
G300892678
UPC #
666272109195
Country of Origin
United States

Dimensions

Depth
1 1/4 in
Height
4 1/2 in
Width
2 3/4 in
Fits Stile Width
4 1/2 in
Overall Depth
1 1/4 in
Overall Width
2 3/4 in
Overall Height
4 1/2 in

Details

Item
Wave-to-Open Touch Plate
Type
Single Gang
Switch Action
DPDT
Includes
(2) Wire Mechanical Switches
Material
Stainless Steel
For Use With
Access control, Automatic Door Operators
Input Voltage
12/24V AC/DC
Standards
UL 294
Finish
Powder Coated
Amps AC
0.5 A @ 125 V AC
Rating
2A @ 30 V DC
ADA Compliant
No
Supports Touchless Operation
Yes
Event Audit Trail
No
Operating Temp.
-40 Degrees to 180 Degrees F
Features
24 GHz Doppler Radar Technology, Adjustable Detection Zone From 2 to 24 in, Visual and Selectable Audio Activation Feedback
Power Source
AC/DC Power
Door Handing
Hands-Free
Fire Rated
No
Output
DPDT Relay
Keypad
No
Performance
Heavy-Duty
Voltage
125V AC, 30V DC
Grade
Professional
Color
White
Supports Operation Type
Touchless Operation
Includes Hardware
Hardware Included
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operation Type
Wave-to-Open
Operation Style
Automatic
Product Type
Wave-to-Open Touch Plate
Performance Grade
1
Hand Orientation
Non-Handed
Power Source - TS Only
AC/DC Power
Power Source - old
AC/DC Power

Description

Wave-to-Open Touch Plate, Type Single Gang, Switch Action DPDT, Material Stainless Steel, Finish Powder Coated, Depth 1 1/4 in, Height 4 1/2 in, Width 2 3/4 in, Color White, Rating 2A @ 30 V DC, Input Voltage 12/24V AC/DC, Output DPDT Relay, Amps AC 0.5 A @ 125 V AC, Operating Temp. -40 Degrees to 180 Degrees F, Event Audit Trail No, Keypad No, Standards UL 294, For Use With Access control, Automatic Door Operators, Includes (2) Wire Mechanical Switches, Door Handing Hands-Free
