Shop FASCO

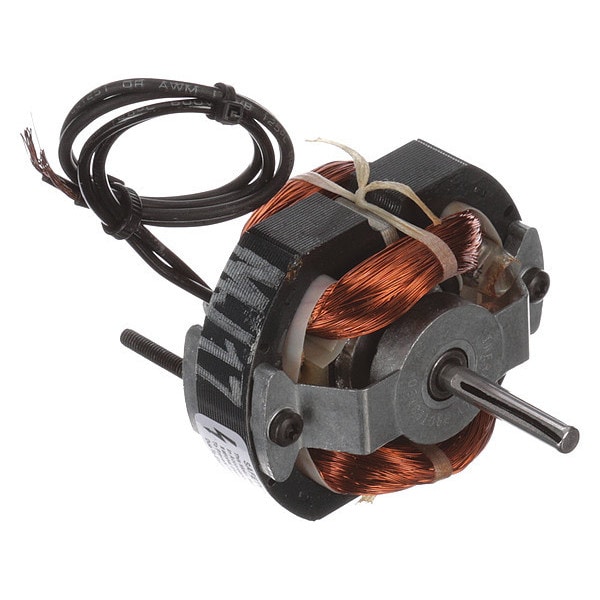

HVAC Motor, 1/100 HP, 3000 rpm, 115V, 3.3

  • Mfr # D201

  • Zoro # G5702462

product price:
$
78.39
/ea

Key Features

Voltage
115V AC
Nameplate RPM
3,000
Motor Enclosure Design
Open Dripproof
Number of Speeds
1
HP
1/85
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D201
Zoro #
G5702462
UPC #
663001024989
Country of Origin
Mexico

Dimensions

Body Dia.
3 5/16 in
Shaft Length
1 1/2 in
Length Less Shaft
7 1/2 in
Shaft Dia.
1/2 in
Overall Length
9 in
Body Diameter
3.3 in
Frame Size
3.3
Shaft Diameter
1/2 in
Wire Rope Length
9 in
Length
9 in

Details

Voltage
115V AC
Nameplate RPM
3,000
Motor Enclosure Design
Open Dripproof
Number of Speeds
1
HP
1/85
RPM Range
1,801-3,000
Standards
CSA Certified, UL Recognized
Application
Fan/Blower
Motor Mounting Type
Ring/Stud
Motor Application
HVAC/R
Duty
Continuous
Full Load Amps
0.69 A
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Hz
60 Hz
Ins. Class
B
Motor Service Factor
1.35
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
No. of Speeds
1
Motor Thermal Protection
Auto
Phase
Single
Motor Bearings
Ball
Motor Design
Shaded Pole
Item
Fan and Blower Motor
Frame
3.3
Mounting Pattern
2-7/8 x 2-7/8
Max. Ambient Temp.
40 Degrees C
Mounting Stud Location
2/Opposite Lead End
Motor Sub Application
Direct Drive Fan/Blower
Number of Shafts
1
Stud/Base Mtg. Pattern
2-7/8 in x 2-7/8 in
Duty Cycle
Continuous
Conduit Box Location
Exterior
Motor Mounting Position
Horizontal
Mounting Stud Pattern
2 7/8 in x 2 7/8 in
Usable @ 208V
Not Usable at 208V
Nominal Efficiency
0.55 %
Weight
12 lb
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
Mounting
Stud
Mounting Position
Horizontal
Drive Type
Belt Drive
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1.35
Insulation Class
B
Motor Enclosure Type
Open Drip Proof
Frequency
60 Hz
Sub Application
General Purpose
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
0.69 A
Frame Material
Steel
Efficiency Rating
Standard Efficiency (IE1)
Product Type
Fan and Blower Motor
Wattage
130 W
Shaft Design
Flat

Description

Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/85 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 115V AC, 0.69 A Full Load Amps, 3.3 Frame, Output Watts 130 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Stud
