Shop All 3.3 Inch Diameter Motors
Fasco

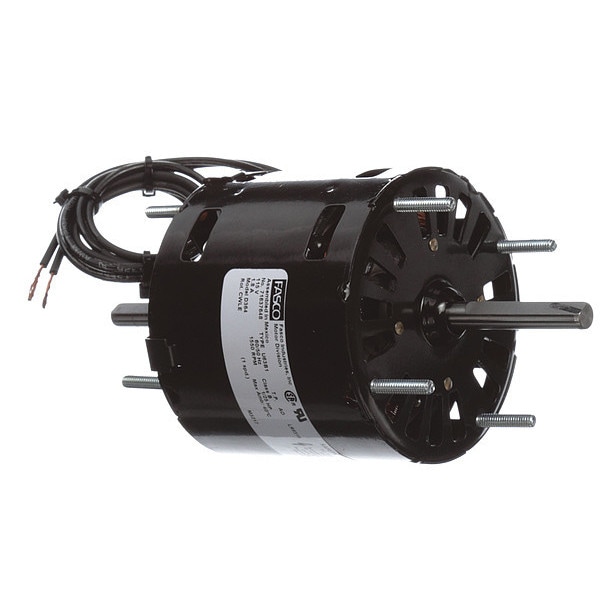

HVAC Motor, 1/25 HP, 1550 rpm, 115V, 3.3

product price: $109.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 115V AC
  • Nameplate RPM 1,550
  • Motor Enclosure Design Open Air-Over
  • Number of Speeds 1
  • HP 1/25
See all product information

Product Information

Dimensions

Body Dia. 3 5/16 in
Shaft Length 1 7/8 in
Length Less Shaft 3 7/16 in
Shaft Dia. 5/16 in
Overall Length 6 13/16 in
Lead Length 21 in
Bolt Circle Dia. 2 7/8 in
Stud Size #8-32

Details

Voltage 115V AC
Nameplate RPM 1,550
Motor Enclosure Design Open Air-Over
Number of Speeds 1
HP 1/25
RPM Range 1,501-1,600
Motor Design Shaded Pole
Duty Continuous
Motor Service Factor 1
Number of Shafts 2
Motor Thermal Protection Auto
Motor Application HVAC/R
Item Direct Drive Blower Motor
Stud/Base Mtg. Pattern 2-7/8 in x 2-7/8 in
Full Load Amps 1.8 A
Mounting Stud Location 4/Both Ends
Standards CSA Certified, UL Recognized
No. of Speeds 1
Hz 60 Hz
Max. Ambient Temp. 40 Degrees C
Motor Bearings Sleeve
Motor Sub Application Direct Drive Fan/Blower
Application HVAC/R
Frame 3.3
Motor Mounting Type Stud
Phase Single
Ins. Class B
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Shaft Rotation CWLE
Motor Shaft Design Flat
Mounting Pattern 2-7/8 x 2-7/8
Capacitor Required No
Motor Mounting Position All Angle
Mounting Holes (8) #8-32
Usable @ 200V No
Motor Frame Material Steel
Weight 3 lb
Usable @ 208V No
Mounting Stud Pattern 2 7/8 in x 2 7/8 in
Mounting Stud

Description

Direct Drive Blower Motor, Single Phase, Motor Design Shaded Pole, 1/25 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, Full Load Amps 1.8 A, 3.3 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CWLE, Max. Ambient Temp. 40 Degrees C, Lead Length 21 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Number of Shafts 2
