  11. HVAC Motor, 1/25 HP, 3000 rpm, 230V, 3.3

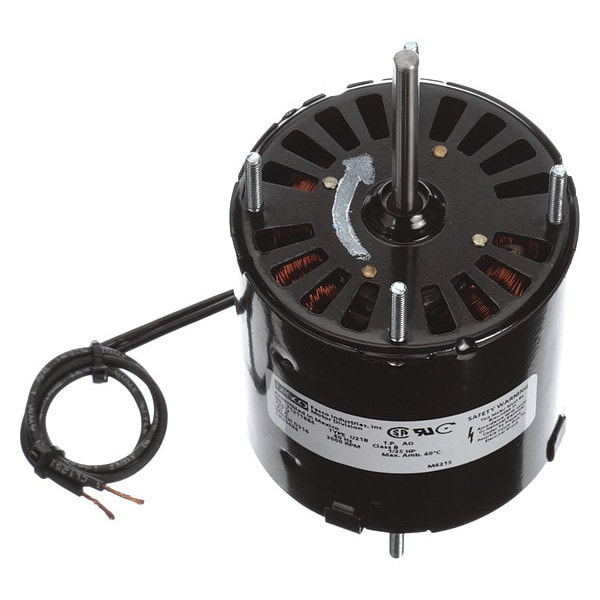

Fasco HVAC Motor, 1/25 HP, 3000 rpm, 230V, 3.3 D216 - main

HVAC Motor, 1/25 HP, 3000 rpm, 230V, 3.3

  • Mfr # D216

  • Zoro # G5547455

product price: $126.99
/ea
Free Shipping & Returns

Key Features

Voltage
230V AC
Nameplate RPM
3,000
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/25
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
D216
Zoro #
G5547455
UPC #
815585029052
Country of Origin
Mexico

Dimensions

Body Dia.
3 5/16 in
Shaft Length
2 1/4 in
Length Less Shaft
3 1/2 in
Shaft Dia.
1/4 in
Overall Length
5 13/16 in
Lead Length
12 in

Details

Voltage
230V AC
Nameplate RPM
3,000
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/25
RPM Range
1,801-3,000
Motor Service Factor
1
Ins. Class
B
Motor Shaft Rotation
CWSE
Full Load Amps
0.65 A
Standards
CSA Certified, UL Recognized
Number of Shafts
1
Item
Direct Drive Blower Motor
Motor Application
HVAC/R
Frame
3.3
Motor Design
Shaded Pole
Motor Shaft Design
Flat
Mounting Pattern
2-7/8 x 2-7/8
Phase
Single
Motor Thermal Protection
Auto
Motor Mounting Type
Ring/Stud
No. of Speeds
1
Mounting Stud Location
4/Both Ends
Motor Bearings
Sleeve
Hz
60 Hz
Motor Sub Application
Direct Drive Fan/Blower
Application
HVAC/R
Max. Ambient Temp.
40 Degrees C
Duty
Continuous
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Stud/Base Mtg. Pattern
2-7/8 in x 2-7/8 in
Capacitor Required
No
Motor Frame Material
Steel
Usable @ 200V
No
Motor Mounting Position
All Angle
Weight
3 lb
Mounting Stud Pattern
2 7/8 in x 2 7/8 in
Usable @ 208V
No
Mounting
Stud

Description

Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/25 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 230V AC, 0.65 A Full Load Amps, 3.3 Frame, Output Watts 30 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
