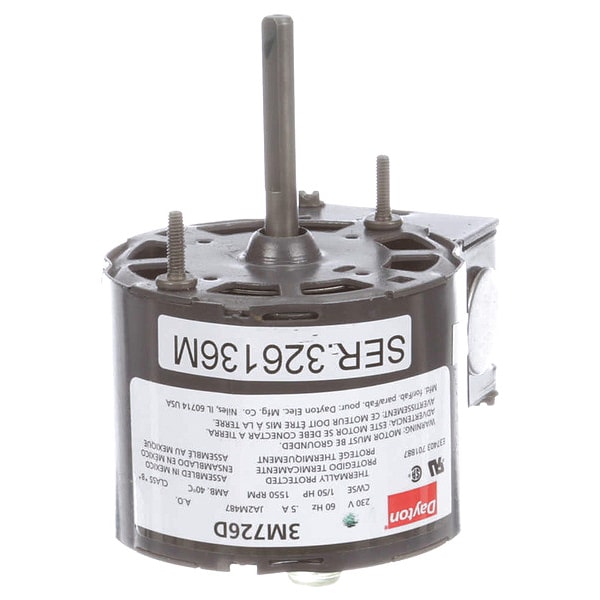

Dayton HVAC Motor, 1/50 HP, 1550 rpm, 230V, 3.3 71634704M - main

HVAC Motor, 1/50 HP, 1550 rpm, 230V, 3.3

  • Mfr # 71634704M

  • Zoro # G3128106

product price:  $63.09
/ea

Key Features

Voltage
230V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/50
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
71634704M
Zoro #
G3128106
UPC #
-
Country of Origin
Mexico

Dimensions

Body Dia.
3 5/16 in
Shaft Length
2 1/4 in
Cord Length
12 in
Length Less Shaft
2 1/2 in
Shaft Dia.
5/16 in
Body Diameter
3.3 in
Frame Size
3.3
Overall Length
4 13/16 in
Shaft Diameter
5/16 in

Details

Voltage
230V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/50
RPM Range
1,501-1,600
Hz
60 Hz
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Motor Application
HVAC/R
Motor Service Factor
1
Footnotes
51
Motor Shaft Rotation
CWSE
Mounting Stud Location
2/Shaft End
No. of Speeds
1
Number of Shafts
1
Motor Bearings
Sleeve
Motor Sub Application
Direct Drive Fan/Blower
Standards
CSA Certified, UL Recognized
Item
HVAC Motor
Motor Design
Shaded Pole
Application
OEM and Replacement Use In A Wide Variety of Fan and Blower
Motor Shaft Design
Flat
Motor Thermal Protection
Auto
Frame
3.3
Includes
5 cu. in. Junction Box
Duty
Continuous
Motor Mounting Type
Ring/Stud
Stud/Base Mtg. Pattern
2-7/8 in
Max. Ambient Temp.
40 Degrees C
Ins. Class
B
Full Load Amps
0.5 A
Mounting Pattern
2-7/8
Phase
Single
Capacitor Required
Capacitor Not Required
Motor Mounting Position
All Angle
Usable @ 208V
Not Usable at 208V
Mounting Stud Pattern
2 7/8 in
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Type
OEM Replacement
Mounting
Stud
Nameplate Service Factor @ 60 Hz
1
Motor Enclosure Type
Open Air Over
Full Load Current @ 60 Hz
0.5 A
Wattage
15 W
Drive Type
Direct Drive
Insulation Class
B
Frequency
60 Hz
Sub Application
General Purpose
Bearing Type
Sleeve
Shaft Design
Flat
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/50 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 230V AC, 0.5 A Full Load Amps, 3.3 Frame, Output Watts 15 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
